Replacement
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

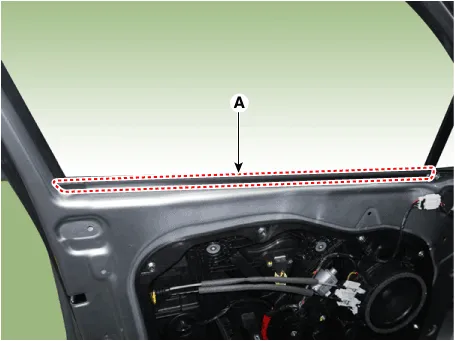

Remove the front door belt inside weatherstrip (A).
3.
To install, reverse removal procedure.

•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
•
Replace any damaged clips (or pin-type retainers).
