Hyundai Santa Fe (TM): Front Door / Front Door Belt Outside Weatherstrip. Repair procedures
| Replacement |
| 1. |
Pull down the front door window glass to the lowest level by pressing
the power window glass switch.
|
| 2. |

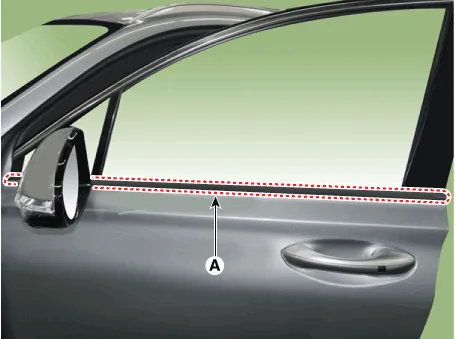

Using a screwdriver or remover, remove the front door belt outside weatherstrip
(A).
|
| 3. |
To install, reverse removal procedure.
|
