| Description |
| • |
Engine coolant is used for circulating heat in order to heat and cool
the transaxle oil.
|
| • |
Prevents over heating of the transaxle oil while the vehicle is moving.
|

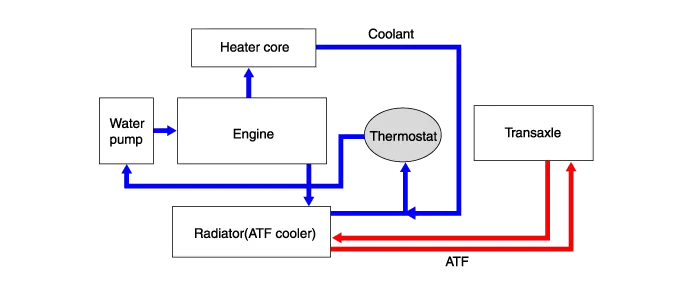

Coolant Flow
Repair procedures • ATF cooler is a unit with the radiator, so refer to radiator removal/installation procedures in the engine section.
