Hyundai Santa Fe (TM): Cylinder Head Assembly / Cylinder Head Cover. Components and components location

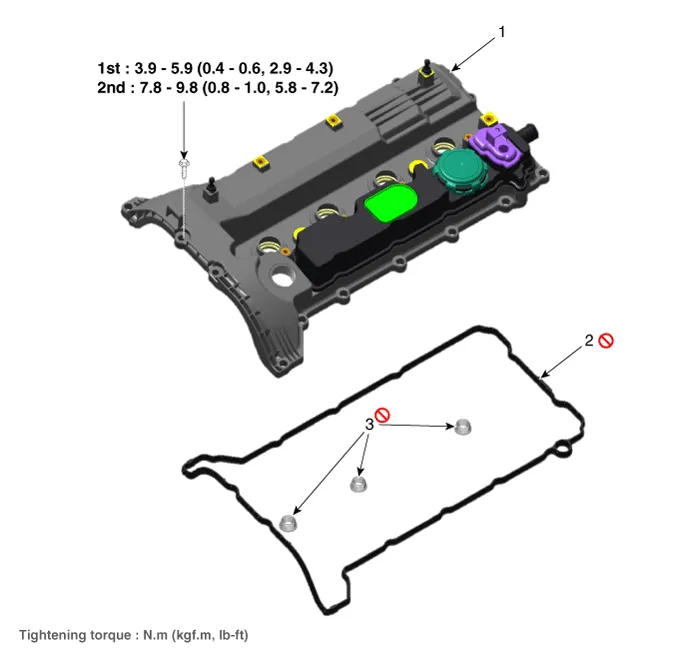

| Components |
| 1. Cylinder head
cover 2. Cylinder head cover gasket |
3. Cylinder head
cover center bolt gasket |
Components 1. Camshaft front bearing cap 2. Camshaft bearing cap 3. OCV & Center bolt 4. Exhaust CVVT assembly 5.
Removal 1. Disconnect the battery negative terminal. 2. Remove the engine cover. • Remove the engine cover on room temperature.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Temperature Control Actuator. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the cool position when connecting 12V to terminal 3 and grounding terminal 7.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Front View Camera Unit. Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the inside rear view mirror cover (A) and front view camera cover (B). 3.
