Hyundai Santa Fe (TM): Cylinder Head Assembly / Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Mechanical System / Cylinder Head Assembly / Components and components location

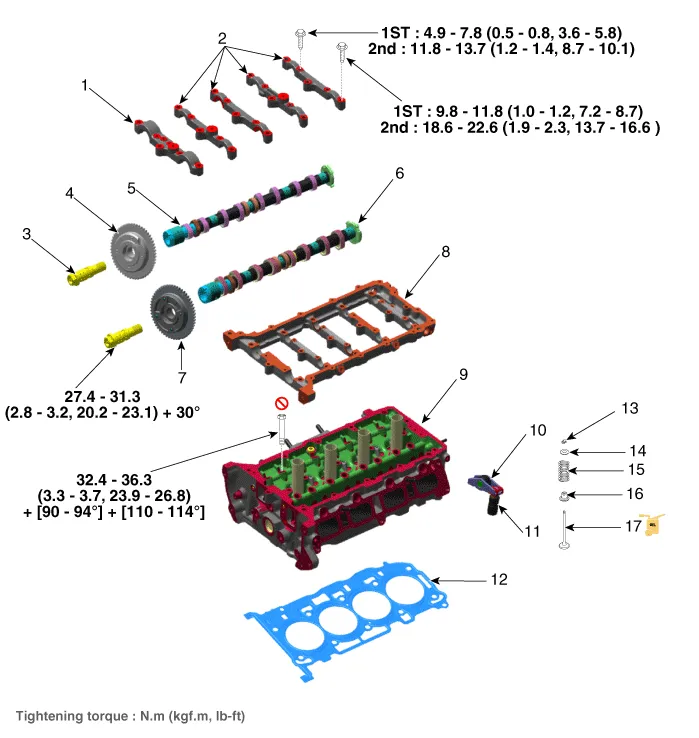

Components

1. Camshaft front bearing cap
2. Camshaft bearing cap
3. OCV & Center bolt
4. Exhaust CVVT assembly
5. Exhaust camshaft
6. Intake camshaft
 7. Intake CVVT assembly
8. Cam carrier
9. Cylinder head
10. Swing arm
11. Hydraulic lash adjuster (HLA)
12. Cylinder head gasket
 13. Retainer lock
14. Retainer
15. Valve spring
16. Valve stem seal
17. Valve

    Components 1. Cylinder head cover 2. Cylinder head cover gasket 3. Cylinder head cover center bolt gasket
