Hyundai Santa Fe (TM): Crash Pad / Crash Pad Side Cover. Components and components location
| Component Location |

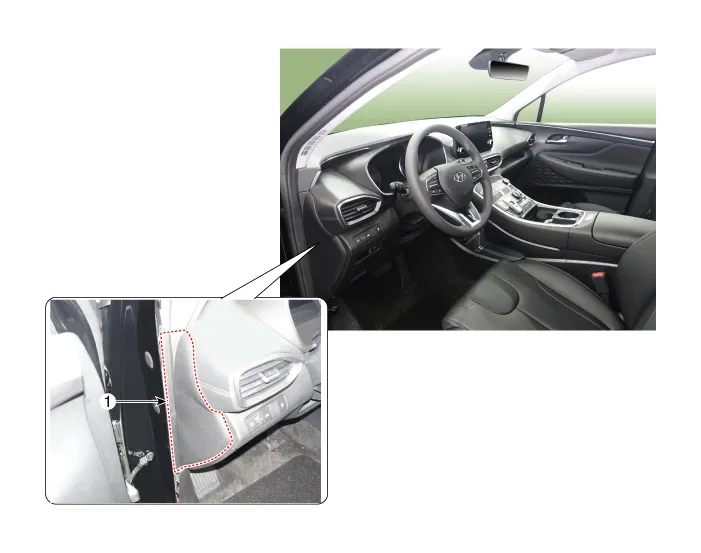

| [LH] |
| 1. Crash pad
side cover [LH] |

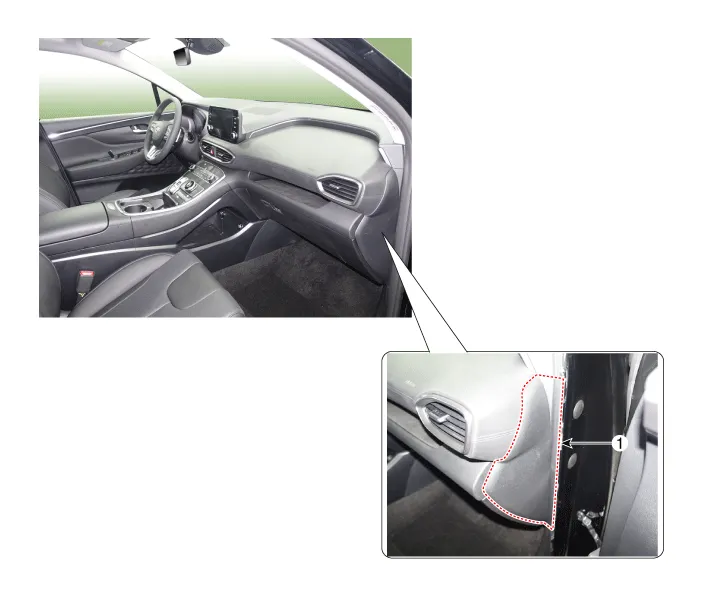

| [RH] |
| 1. Crash pad
side cover [RH] |
Replacement [Steering column shroud upper panel] • Put on gloves to prevent hand injuries.
Replacement • Put on gloves to prevent hand injuries.
