Hyundai Santa Fe (TM): Crash Pad / Steering Column Shroud Panel. Repair procedures
[Steering column shroud upper panel]
| •
|
Put on gloves to prevent hand injuries.
|
|
| •
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| •
|
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |

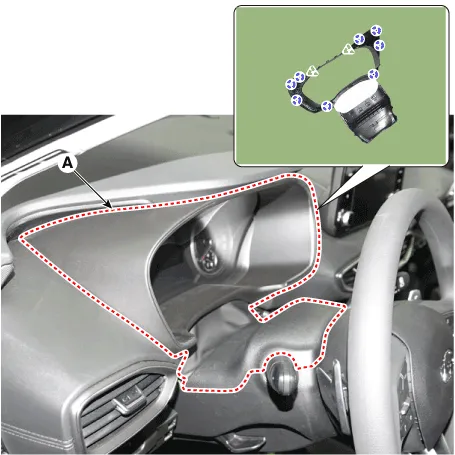

Using a screwdriver or remover, remove the steering column shroud panel
(A).
|
|
2. |
To install, reverse removal procedure.
|
• |
Replace any damaged clips (or pin-type retainers).
|
|
|
[Steering column shroud lower panel]
| •
|
Put on gloves to prevent hand injuries.
|
|
| •
|
When removing with a flat-tip screwdriver or remover, wrap protective
tape around the tools to prevent damage to components.
|
| •
|
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| •
|
Take care not to bend or scratch the trim and panels.
|
|
|
1. |
Remove the steering column shroud panel.
|
|
2. |
Remove the crash pad lower panel.
(Refer to Crash Pad - "Crash Pad Lower Panel")
|
|
3. |

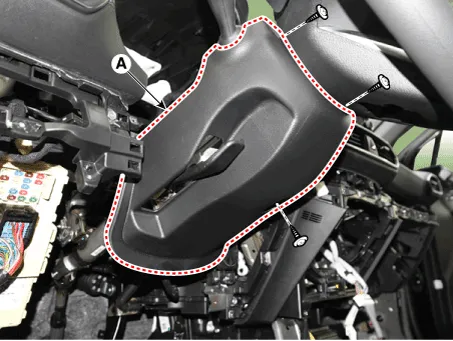

Loosen the mounting screws by turning the steering wheel to the left
and right, and remove the steering column shroud lower panel (A).
|
|
4. |
To install, reverse removal procedure.
|
• |
Replace any damaged clips (or pin-type retainers).
|
|
|
Component Location
1. Steering Column
Shroud Lower Panel
2. Steering Column
Shroud Upper Panel
