Removal

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Disconnect the negative (-) battery terminal.
2.

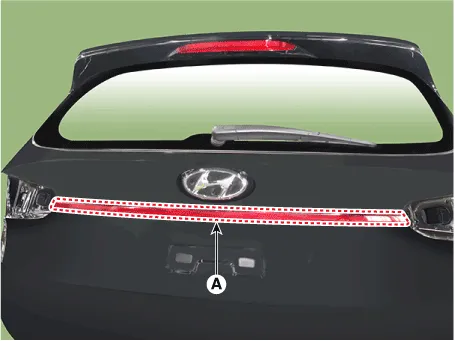

Remove the rear combination cover (A).
3.

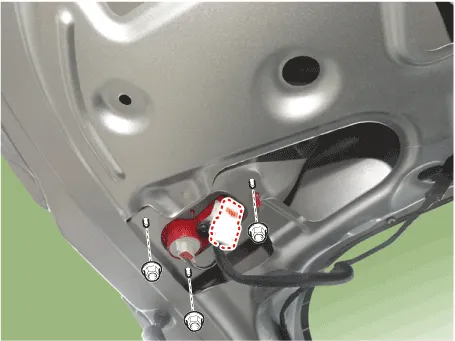

Remove the inside rear combination lamp assembly after loosening the nuts and disconnecting the connector.
4.

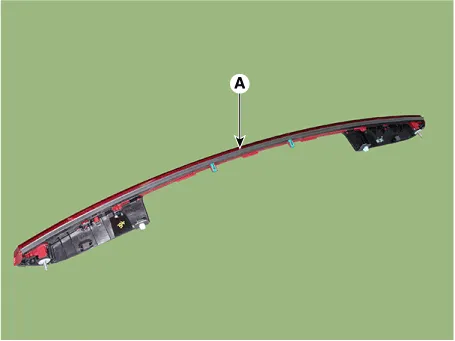

Remove the center garnish lamp (A) after loosening mounting nuts.
Installation
1.
Install the center garnish lamp.
2.
Install the inside rear combination lamp.
3.
Connect the negative (-) battery terminal.

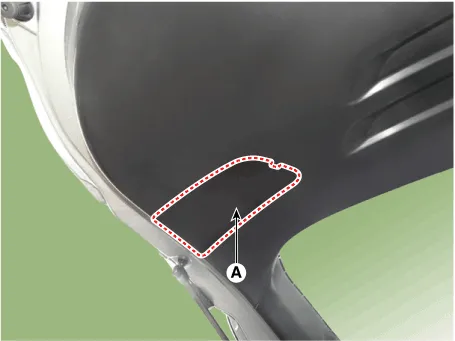

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear combination lamp mounting cap (A).
