Hyundai Santa Fe (TM): Lighting System / Rear Combination Lamp. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Lighting System / Rear Combination Lamp. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.

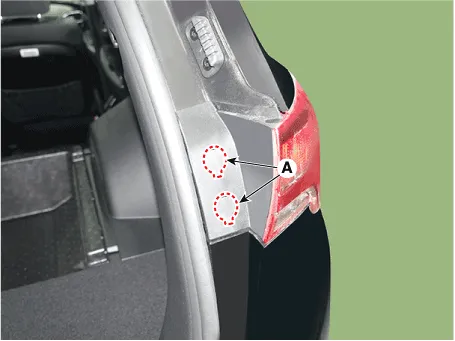

Remove the rear combination lamp mounting cap (A).
3.
Loosen the mounting bolts then remove the outside rear combination lamp (A).
4.

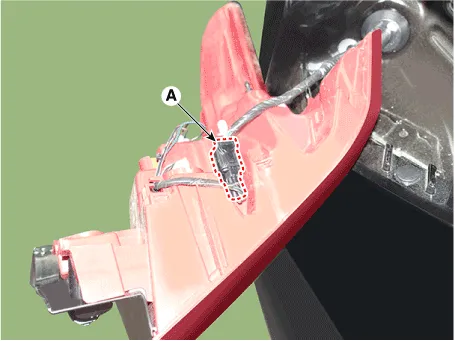

Disconnect the rear combination lamp connector (A).
5.

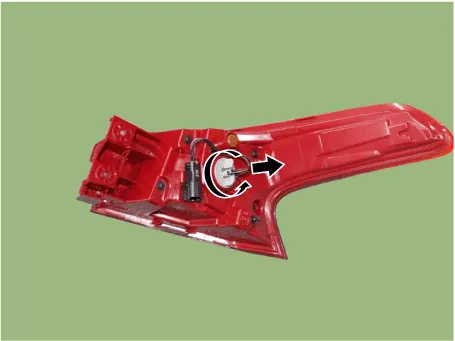

Remove the bulb after turning it in the counter clock-wise direction.
6.
Remove the rear combination cover (A).
7.

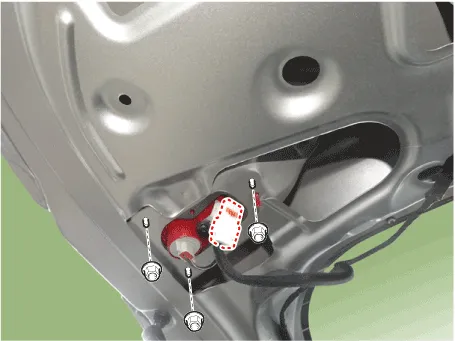

Remove the inside rear combination lamp assembly after loosening the nuts and disconnecting the connector.
8.

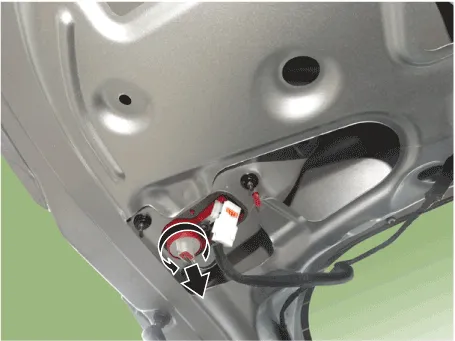

Remove the bulb after disconnecting the connector.
Installation
1.
Install the tailgate combination lamp assembly after assembling the bulb.
2.
Install the lamp cover to the tailgate after connecting the lamp connector.
3.
Install the rear combination lamp assembly after assembling the bulbs and connecting the lamp connector.

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the luggage room lamp lens (A) with a flat-tip screwdriver.

    Removal    • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
