Hyundai Santa Fe (TM): AVN System / AVN Remote Control. Schematic diagrams

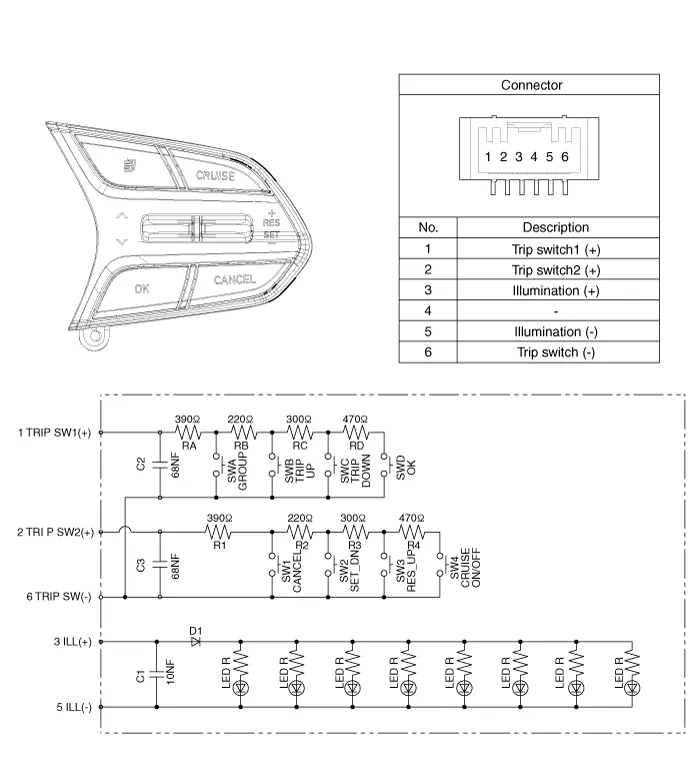

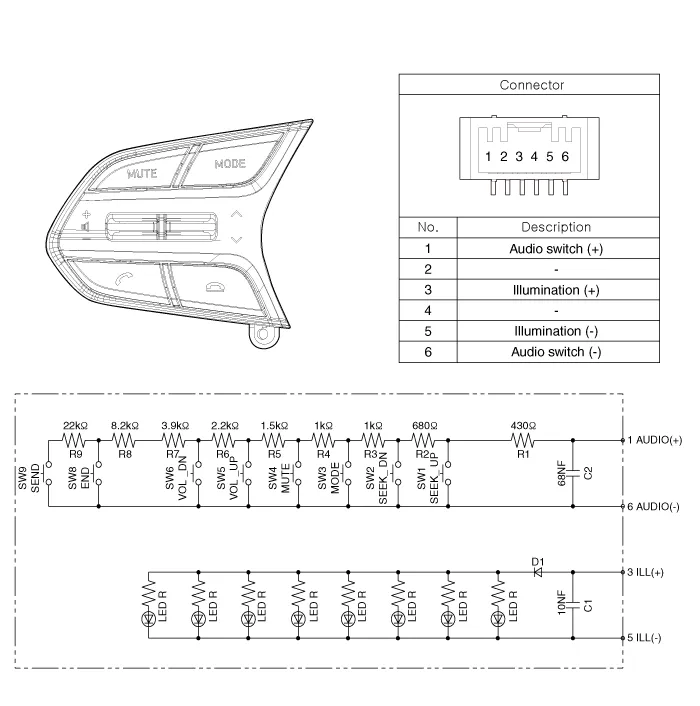

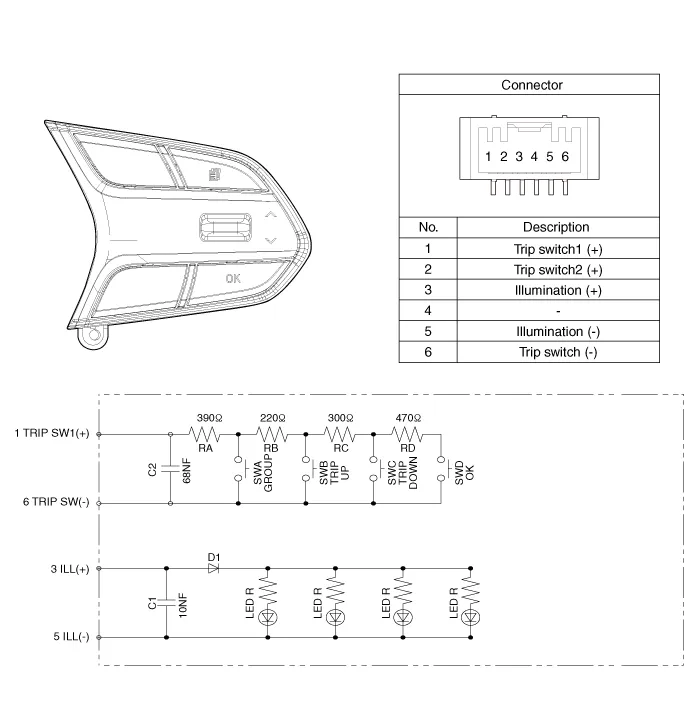

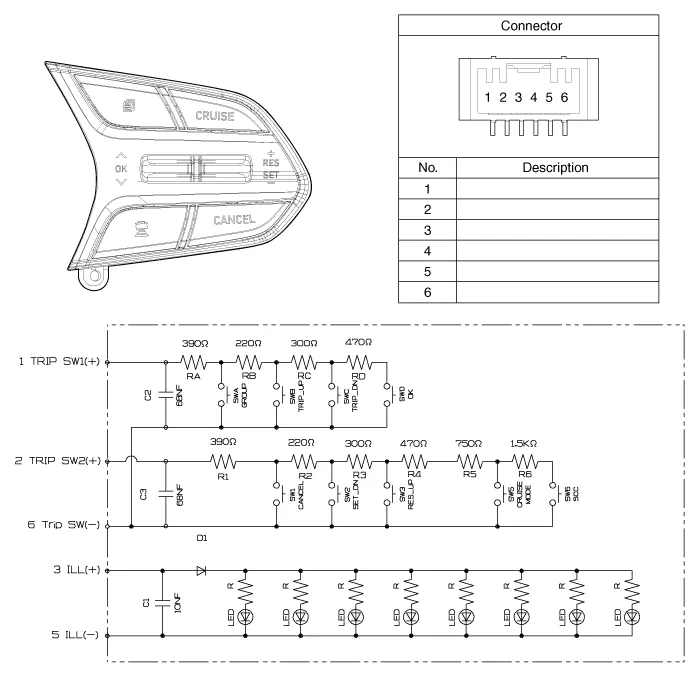

| Circuit Diagram |
Components 1. Remote control switch (LH : Audio) 2. Remote control switch (RH : Cruise+Flex)
Inspection 1. Check for resistance between terminals in left switch position. [Audio/Bluetooth] Switch Connector terminal Resistance (± 3%) SEEK Up 1 - 6 430 Ω SEEK Down 1 - 6 1.
