Hyundai Santa Fe (TM): Audio / Antenna. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Audio / Antenna. Repair procedures

Removal
1.
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
2.

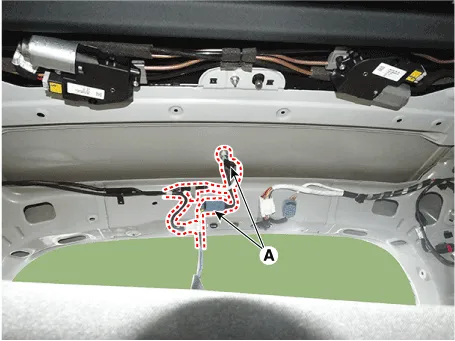

Disconnect the roof antenna connectors (A) from the roof antenna.
3.

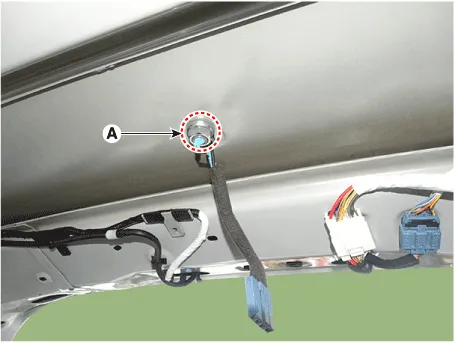

Remove the roof antenna after removing a nut (A).
Installation
1.
Connect the roof antenna connectors.
2.
Install the rear roof trim.

–
Make sure that the cables and connectors are plugged in properly.
–
Check the audio system.
