Hyundai Santa Fe (TM): Controller / Heater & A/C Control Unit (DATC). Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Controller / Heater & A/C Control Unit (DATC). Components and components location

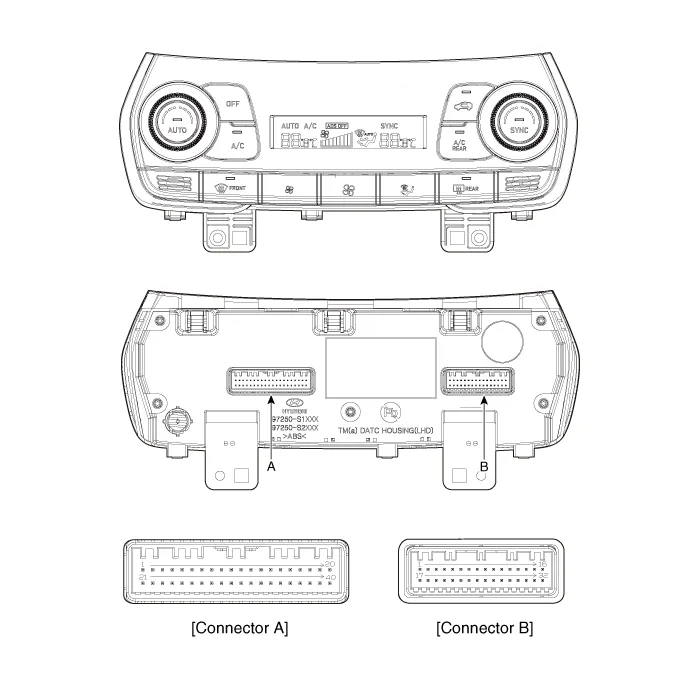

Component

Connector Pin Function
Pin No
Connector A
Connector B
1
 Battery
 Temperature Actuator Feedback - Passenger
2
 ISG B+
 Temperature Actuator (Cool) - Passenger
3
 ILL+ (TAIL)
 Temperature Actuator (Warm) - Passenger
4
 Sensor REF (+5V)
 Defogging Actuator Feedback
5
 Mode Actuator Feedback
 Defogging Actuator (Open)
6
 Temperature Actuator Feedback - Driver
 Defogging Actuator (Close)
7
 Intake Actuator Feedback
 -
8
 Evaporator Temperature Sensor (+)
 -
9
 Ambient Temperature Sensor (+)
-
10
 Mode Actuator (Vent)
 In-car sensor (+)
11
 Mode Actuator (Defrost)
PAB IGN1
12
 Temperature Control Actuator (Cool) - Driver
 Defogging Sensor Glass Temperature
13
 Temperature Control Actuator (Warm) - Driver
 -
14
 Intake Actuator (Fresh Air)
 -
15
 Intake Actuator (Recirculated Air)
 -
16
 HTD (Rear Defrost)
 Ground
17
 Rear Defogging Swich
 Rear Blower Motor (+)
18
 -
 Rear Mosfer (Drain Feedback)
19
 -
 Rear Mosfer (Gate)
20
 ILL - (RHEO)
 -
21
 IGN 2
 -
22
 IGN 1
 -
23
 Blower Motor (+)
 -
24
 Photo Sensor (-)_LEFT
 LIN BUS (Climate control)
25
 Photo Sensor (-)_RIGHT
 -
26
 Defogging Sensor Data
 -
27
 Defogging Sensor SCL
 -
28
 -
 -
29
 PTC Relay 2 (DIESEL) /
Driver Seat Signal PWM
PTC Relay (GASOLINE)
30
 PTC ON Signal (DIESEL) /
-
- (GASOLINE)
31
 -
 Rear C-LINE
32
 -
 -
33
 P_CAN (HIGH)
34
 P_CAN (LOW)
35
 Mosfet (DRAIN F/B)
36
 Mosfet (GATE)
37
 ECV (+)
38
 ECV (-) Ground
39
 Sensor Ground
40
 Ground

    Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the console upper cover (A).

    Self Diagnosis 1. Self-diagnosis process.    • When operating the self-diagnostics, the below fault(self-diagnostics code) will blink at 0.
