Hyundai Santa Fe: Coupling Assembly / Pressure Sensor. Schematic diagrams

Hyundai Santa Fe (TM) 2019-2024 Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor. Schematic diagrams

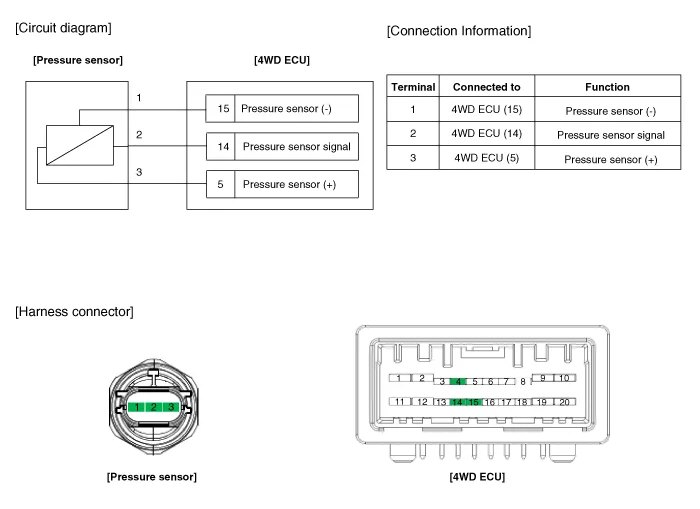

Circuit Diagram

    Pressure Sensor. Description and operation

    Description The 4WD ECU makes a Motor Pump(Actuator) turn round for generating an oil pressure. And then it presses a multiple disk clutch and transfers the generated torque into rear wheels...

    Pressure Sensor. Repair procedures

    Inspection Measure the resistance of pressure sensor 1. Turn ignition switch OFF. 2...
