Hyundai Santa Fe (TM): Coupling Assembly / Pressure Sensor. Description and operation
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor. Description and operation
| Description |
The 4WD ECU makes a Motor Pump(Actuator) turn round for generating an oil pressure.
And then it presses a multiple disk clutch and transfers the generated torque
into rear wheels. Its torque value varies according to a pressure status.
| • |

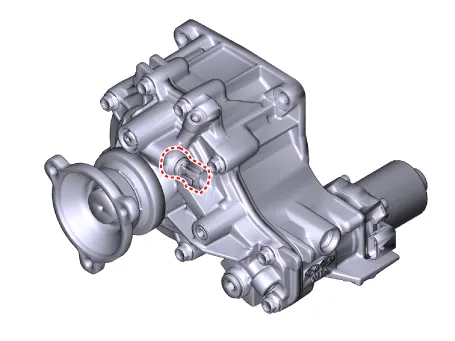

Component location
|
Inspection • If you have trouble code related to the oil hydraulic motor (actuator), check oil hydraulic motor (actuator) according to the inspection process.
Circuit Diagram
