Hyundai Santa Fe (TM): Air conditioning System / Condenser. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Condenser. Components and components location

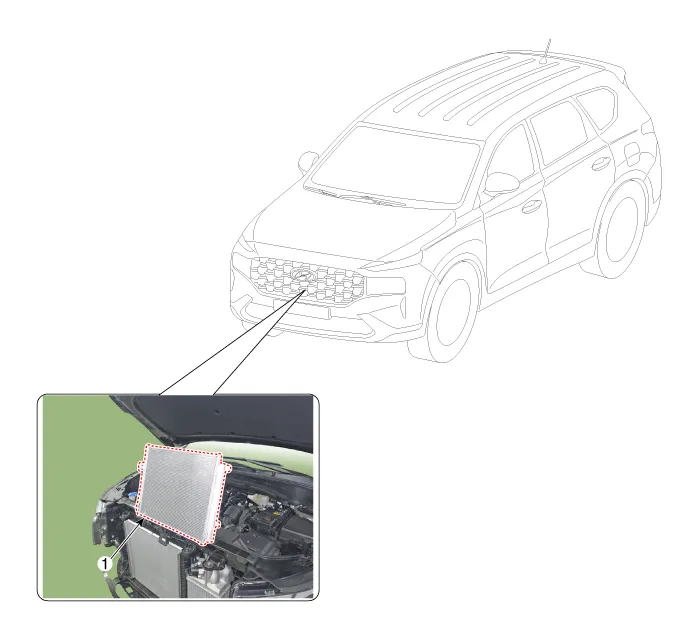

Components Location

1. Condensor

❮Compressor. Repair procedures

Removal 1. If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.

Condenser. Repair procedures❯

Inspection 1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air.
