Components

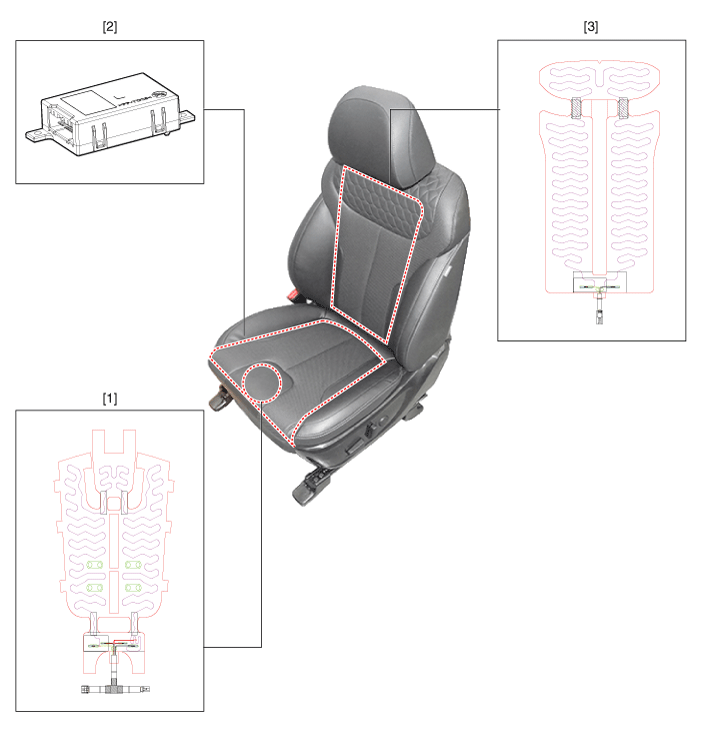

Driver/Passenger Seat Heater

1. Seat cushion heater
2. Seat heater unit (Passenger only)
 3. Seat back heater

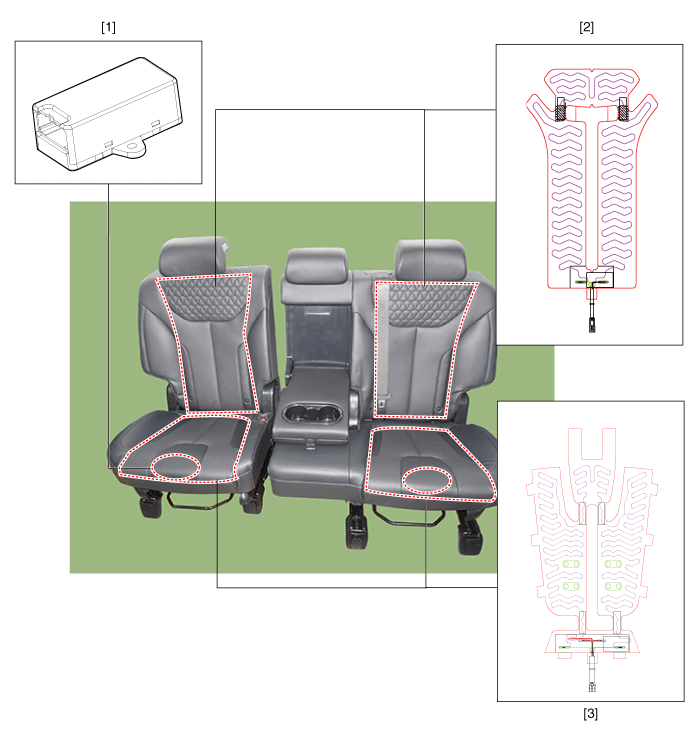

Second Line Seat Heater

1. Seat heater unit
2. Seat back heater
 3. Seat cushion heater

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the console upper cover (A).

    Components Driver/Passenger Seat Heater Second Line Seat Heater
