Hyundai Santa Fe: AVN System / Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / AVN System / Components and components location

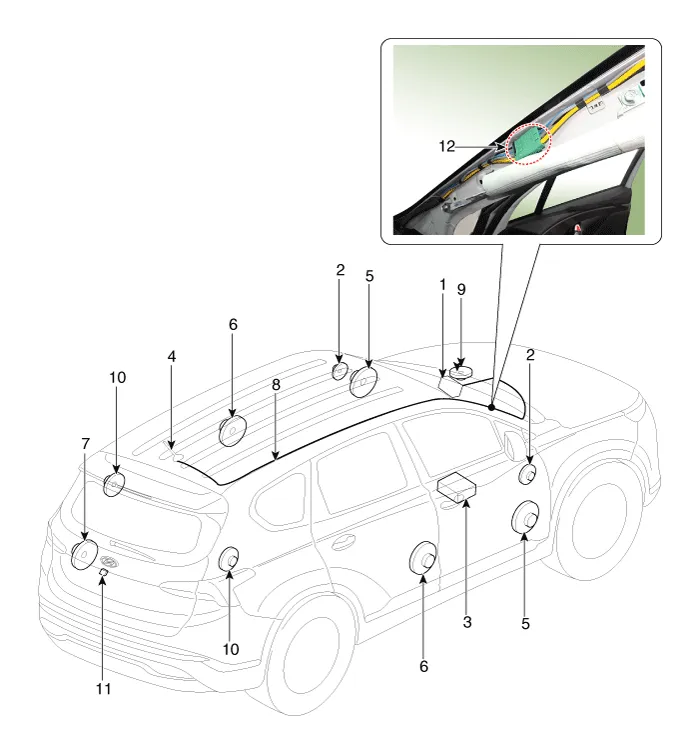

Components Location

1. AVN (A/V & Navigation head unit)
2. Tweeter speaker
3. External amplifier
4. Roof antenna
5. Front door speaker
6. Rear door speaker
7. Subwoofer speaker
8. Antenna feeder cable
9. Center speaker
10. Surround speaker
11. Back view camera
12. Feeder cable joint connector

    Description and operation

    Description AVN system The AVN system has improved information search and easiness of manipulation for the driver by simplifying the system operation experience and unifying the display of the user information such as multimedia and car information...

    Specifications

    Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87...
