Hyundai Santa Fe (TM): Charging System / Alternator. Specifications

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Electrical System / Charging System / Alternator. Specifications

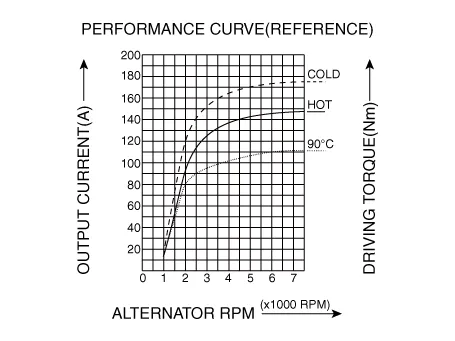

Specification
Item
Specification
Rated voltage
 13.5V , 130A
Speed in use
 1,000 - 18,000rpm
Pin
 1 (LIN)
Pulley Type
OAP pulley

    Description The Alternator has eight built-in diodes, each rectifying AC current to DC current. Therefore, DC current appears at alternator "B" terminal.

    Removal    • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
