Vehicle Identification Number (VIN)

The vehicle identification number (VIN) is the number used in registering your vehicle and in all legal matters pertaining to its ownership, etc.

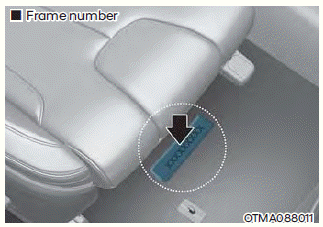

The number is punched on the floor under the passenger seat. To check the number, open the cover.

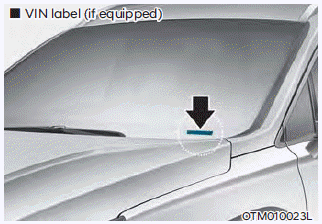

The VIN is also on a plate attached to the top of the left side dashboard. The number on the plate can easily be seen through the windshield from outside.

Vehicle certification label

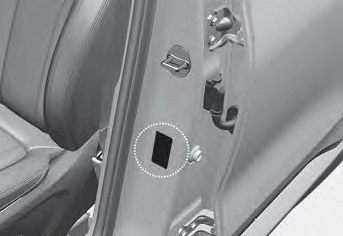

The vehicle certification label attached on the driver’s (or front passenger’s) side center pillar gives the vehicle identification number (VIN).

Tire specification and pressure label

The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

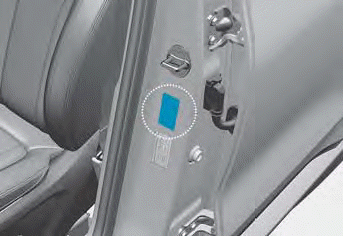

The tire label located on the driver’s side center pillar gives the tire pressures recommended for your vehicle.
