Hyundai Santa Fe (TM): Hydraulic System / Underdrive Brake Control Solenoid Valve (UD/B_VFS). Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Automatic Transaxle System (SBC) / Hydraulic System / Underdrive Brake Control Solenoid Valve (UD/B_VFS). Description and operation

Description

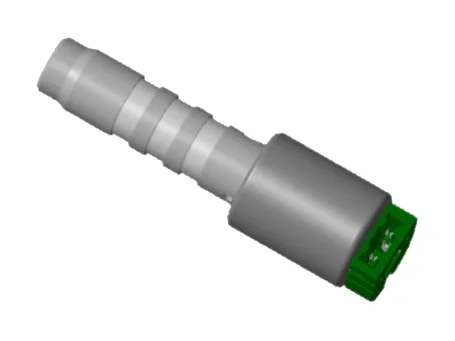

•	Underdrive brake control solenoid valve(UD/B) is attached to the valve body.

•	This variable force solenoid valve directly controls the hydraulic pressure inside the underdrive brake.
