Hyundai Santa Fe (TM): Blind-Spot Collision-Avoidance Assist (BCA) / System settings

Setting functions for the system

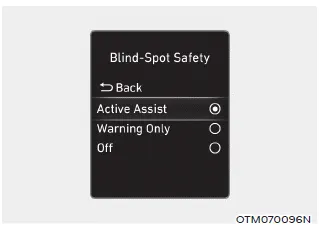

Blind-Spot Safety

With the engine on, select ‘Driver Assistance → Blind-Spot Safety’ from the Settings menu to set whether or not to use each function.

-- If ‘Active Assist’ is selected, the system will warn the driver with a warning message, an audible warning and braking assist will be applied depending on the collision risk levels.
-- If ‘Warning Only’ is selected, the system will warn the driver with a warning message and an audible warning depending on the collision risk levels. Braking will not be assisted.
-- If ‘Off’ is selected, the system will turn off.

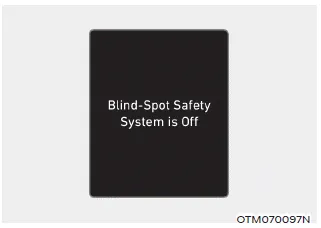

When the engine is restarted with the system off, the ‘Blind-Spot Safety System is Off’ message will appear on the cluster.

If you change the setting from ‘Off’ to ‘Active Assist’ or ‘Warning Only’, the warning light on the side view mirror will blink for three seconds.

In addition, if the engine is turned on, when the system is set to ‘Active Assist’ or ‘Warning Only’, the warning light on the side view mirror will blink for three seconds.

WARNING

• If ‘Warning Only’ is selected, braking is not assisted.
• If ‘Off’ is selected, the driver should always be aware of the surroundings and drive safely.

Information

If the engine is restarted, Blind-Spot Safety system will maintain the last setting.

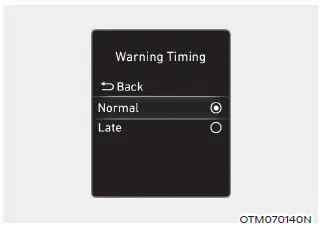

Warning Timing

With the engine on, select ‘Driver Assistance → Warning Timing’ from the Settings menu to change the initial warning activation time for Blind-Spot Safety system.

When the vehicle is first delivered, Warning Timing is set to ‘Normal’. If you change the Warning Timing, the warning time of other Driver Assistance systems may change.

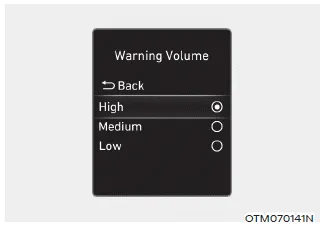

Warning Volume

With the engine on, select ‘Driver Assistance → Warning Volume’ from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Blind-Spot Safety system.

If you change the Warning Volume, the warning volume of other Driver Assistance systems may change.

CAUTION

• The setting of the Warning Timing and Warning Volume applies to all functions of the Blind-Spot Safety system.
• Even though ‘Normal’ is selected for Warning Timing, if the vehicles approaches at high speed, the initial warning activation time may seem late.
• Select ‘Late’ for Warning Timing when traffic is light and when driving speed is slow.
