Hyundai Santa Fe (TM): Parking Safety / System operation
Operating button
Parking Distance Warning Off button
- Press the Parking Distance Warning Off (
)
button to turn off Reverse Parking Distance Warning. Press the button again
to turn on the system. - When Reverse Parking Distance Warning is off (button indicator light on), if you shift the gear to R (Reverse), the system will automatically turn on.
Reverse Parking Distance Warning
- Reverse Parking Distance Warning will operate when the gear is in R (Reverse).
- Reverse Parking Distance Warning detects a person, animal or object in the rear when the vehicle’s rearward speed is below 6 mph (10 km/h).

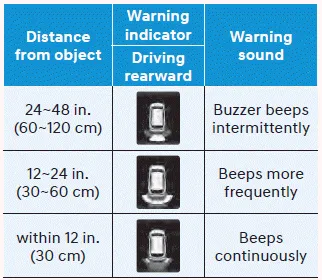

- The corresponding indicator will illuminate whenever each ultrasonic senor detects a person, animal or object in its sensing range. Also an audible warning will sound.
- When more than two objects are detected at the same time, the closest one will be warned with an audible warning.
- The shape of the indicator in the illustration may differ from the actual vehicle.
Reverse Parking Distance Warning will help warn the driver if an obstacle is detected within a certain distance when the vehicle is moving in reverse at low speeds.
System malfunction After starting the engine, a beep will sound when the gear is shifted to R (Reverse) to indicate the system is operating normally. However, if one or more of the following occurs, first check whether the ultrasonic sensor is damaged or blocked with foreign material.
