Hyundai Santa Fe (TM): Surround View Monitor (SVM) / System operation

Operating button

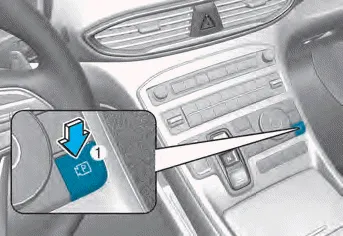

• Press the Parking/View button (1) to turn on Surround View Monitor. Press the button again to turn off the system.

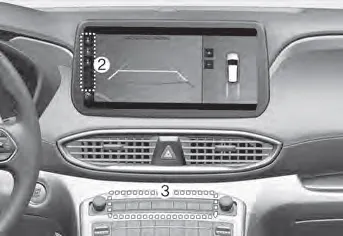

• Other view modes can be selected by touching the view icons (2) on the Surround View Monitor screen.
• When one of the infotainment system button (3) is pressed without the gear in R (Reverse), Surround View Monitor will turn off.

Front view

The front image is displayed on the screen when the gear is in N (Neutral) or D (Drive) to assist in parking. The front view has a top view/front view/side view.

Operating conditions

• Front view function will operate when the following conditions are satisfied:
  -- While the infotainment system screen is being displayed, press the Parking/View button (1) briefly when the gear is in D (Drive) or N (Neutral) and vehicle speed is below 9 mph (15 km/h).
• Surround View Monitor Auto On function will operate when the following conditions are satisfied:
  -- With ‘Driver Assistance → Parking Safety → Surround View Monitor Auto On’ selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive).

Off conditions

• Press the Parking/View button (1) again, the image will turn off.
• When vehicle speed is above 9 mph (15 km/h) with the gear in D (Drive), Surround View Monitor will turn off and the screen will change back to the previous infotainment system screen. Although you drive below 9 mph (15 km/h) again, Surround View Monitor will not turn on.
• Press one of the infotainment system button (3), the screen will change to the infotainment system screen.
• Shift the gear to P (Park), the image will turn off.

Rear view

The rear image is displayed on the screen when the gear is in R (Revers) or P (Park) to assist in parking. The rear view has a top view/rear view/side view.

Operating conditions

• Shift the gear to R (Reverse), the image will appear on the screen.
• Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen. However, parking guidance is not displayed.

Off conditions

• The image cannot be turned off when the gear is in R (Reverse).
• Shift the gear from R (Reverse) to P (Park), the image will turn off.
• Press the Parking/View button (1) again while the gear is in P (Park) with the image on the screen.
