| Components |

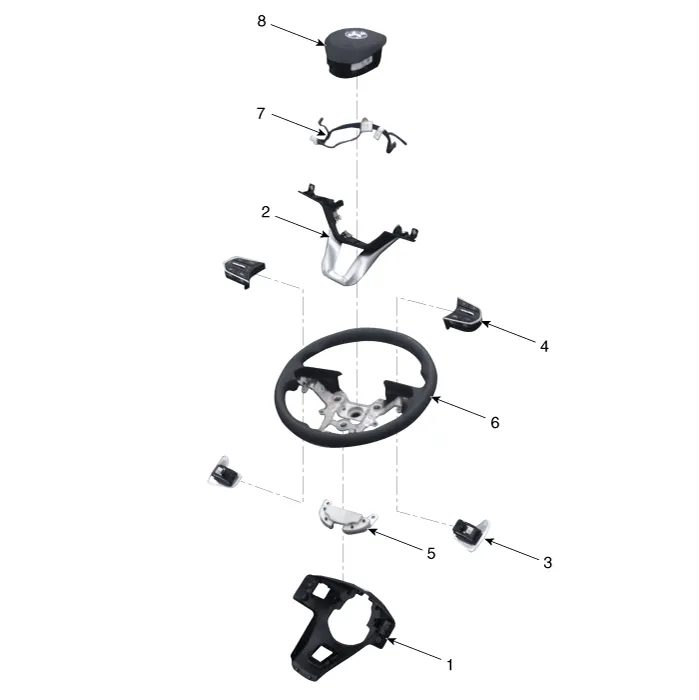

| 1. Lower cover 2. Switch bezel 3. Remote control switch 4. Paddle shift |
5. Damper 6. Steering Wheel 7. Wiring 8. Drive airbag module (DAB) |
| Removal |
| 1. |
Turn the steering wheel so that the front wheels can face straight ahead.
|
| 2. |
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
|
| 3. |
Remove the drive airbag module.
(Refer to Restraint - "Drive Air Bag Module")
|
| 4. |

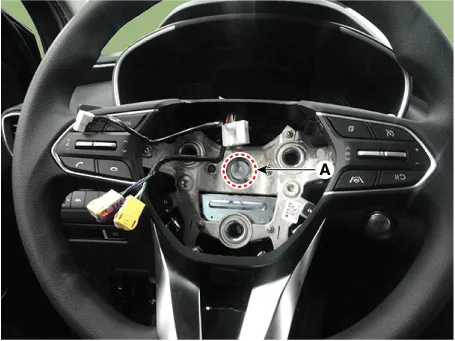

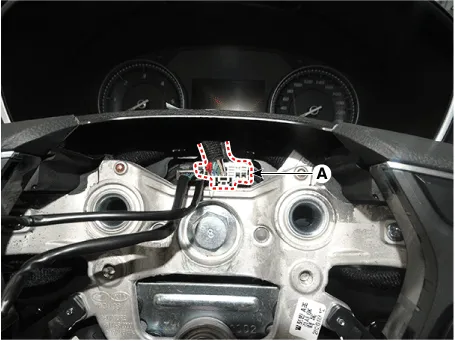

Disconnect the steering wheel connector (A).
|
| 5. |

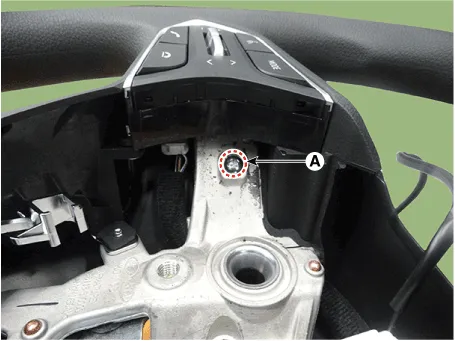

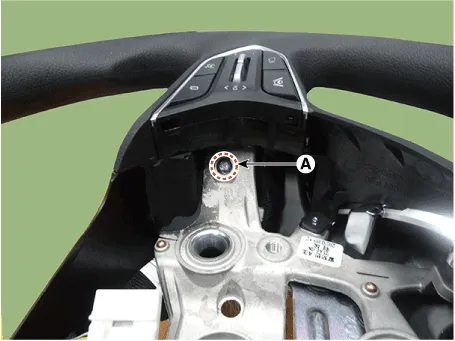

Remove the steering wheel after loosening the bolt (A).
|
| Disassembly |
| 1. |

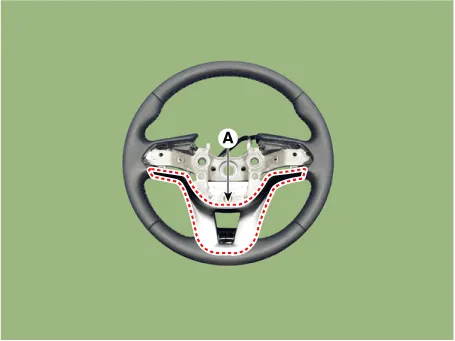

Loosen the screw and then remove the lower cover (A).
|
| 2. |
Disconnect the remote control switch connector (A).
|
| 3. |

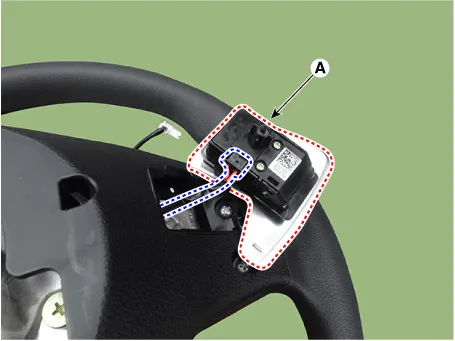

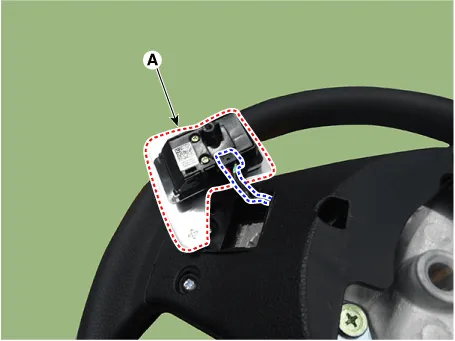

Loosen the screw and then remove the remote control switch (A).
|
| 4. |

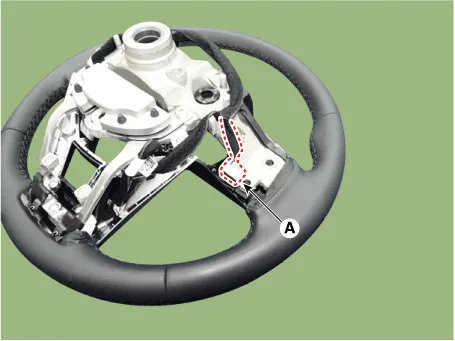

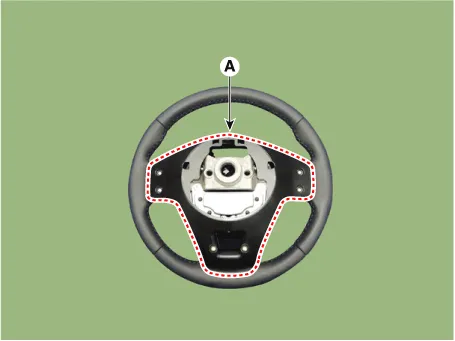

Remove the steering wheel bezel (A).
|
| 5. |

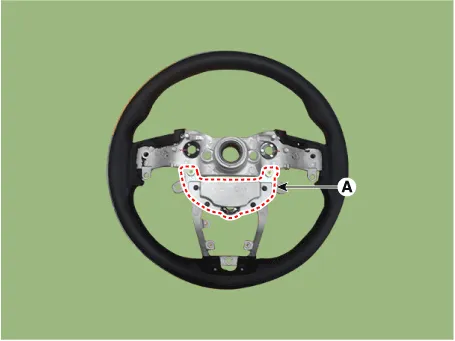

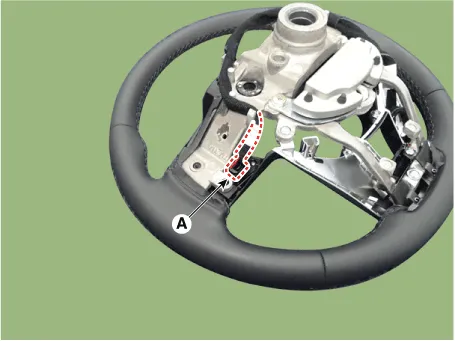

Remove the steering wheel damper (A) after loosening the mounting bolts.
|
| 1. |
Loosen the paddle shift switch mounting screw (A).
|
| 2. |
Remove the paddle shift switch (A) after disconnecting the connector.
|
| 3. |
Remove the lower cover (A) after loosening the screw.
|
| 4. |
Disconnect the remote control switch connector (A).
|
| 5. |
Remove the remote control switch (A) after loosening the screw.
|
| 6. |
Remove the steering wheel bezel (A).
|
| 7. |
Remove the steering wheel damper (A) after loosening the mounting bolts.
|
| Reassembly |
| 1. |
To reassembly, reverse the disassembly procedure.
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| Description |


| Specifications |
|
Item |
Specification |
|
Voltage |
13.5 V |
|

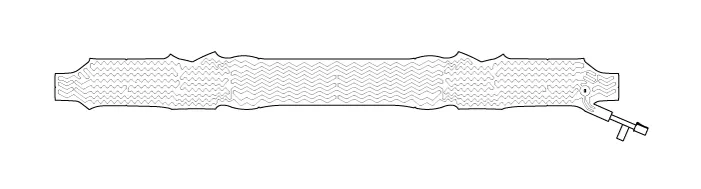

Heated pad resistance |
1.68 Ω ± 10 % |
|
NTC resistance |
10.0 kΩ ± 5 % (25 °C) |

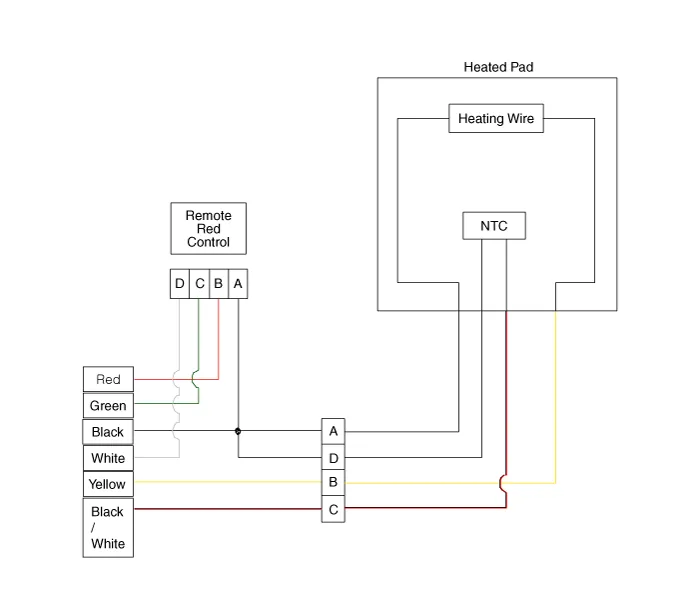

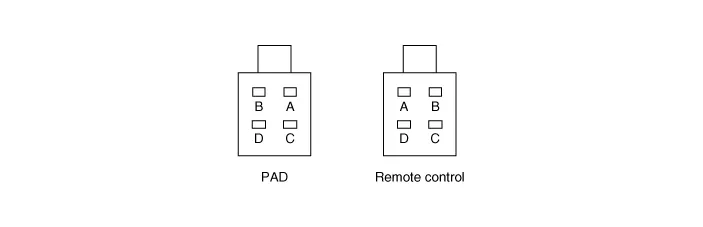

| System Circuit Diagram |


|
Item |
Pin |
Function |
Wire color |
|
Pad |
A |
HEATER |
Red / Black |
|
B |
GND |
Brown / Black |
|
|
C |
NTC- |
Black |
|
|
D |
NTC+ |
Black |
|
|
Remote control |
A |
GND |
Black |
|
B |
BAT |
Red |
|
|
C |
LED |
Green |
|
|
D |
SWITCH |
White |

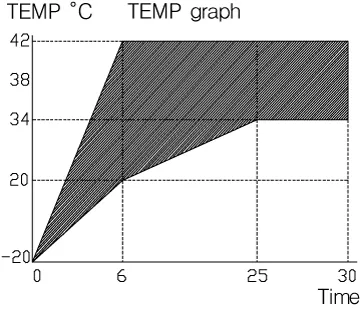

| Inpection |
| 1. |
Measure a resistance of NTC and Heated pad.
|
| 2. |
Measure a temperature.
|
