Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Steering System / Motor Driven Power Steering / Steering Gear Box. Components and components location

Components

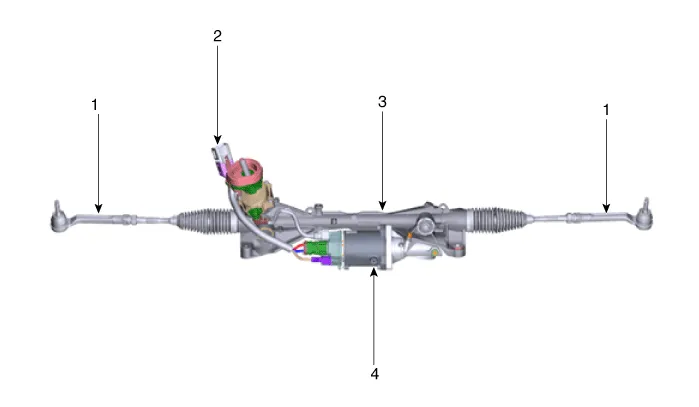

[R-MDPS]

1. Tie rod end
2. Lead wire

3. Short gear
4. Power pack

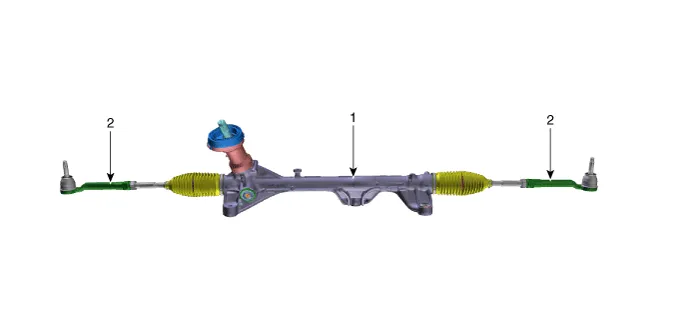

[C-MDPS]

1. Steering gera box

2 Tie rod end
