Hyundai Santa Fe (TM): Body Side Molding / Side Sill Molding. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Body Side Molding / Side Sill Molding. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.

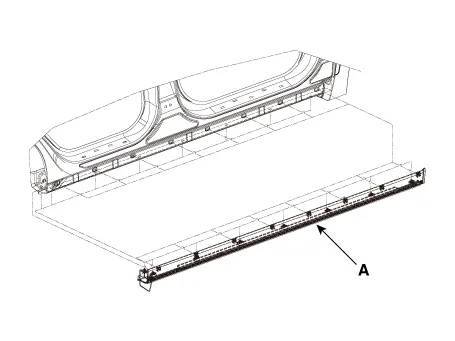

Using a remover, remove the side sill molding (A).
2.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
