Hyundai Santa Fe (TM): Light bulbs / Side repeater lamp replacement

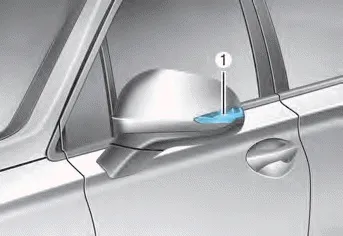

If the LED lamp (1) does not operate, we recommend that the system be inspected by an authorized HYUNDAI dealer.
The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.
A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.
Type A (1) Headlamp (High) (2) Headlamp (Low) (3) Daytime running light/Position light (4) Turn signal lamp (5) Side marker lamp Turn signal lamp 1. Engage the parking brake and disconnect the negative battery cable.
Type A (1) Tail/Stop lamp (2) Tail lamp (3) Turn signal lamp (4) Reverse lamp (5) Side marker lamp Stop/Tail lamp (Outside), Reverse lamp 1. Turn off the engine.
