Hyundai Santa Fe (TM): Rear Corner Radar System / Warning Indicator. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear Corner Radar System / Warning Indicator. Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front door trim")
3.

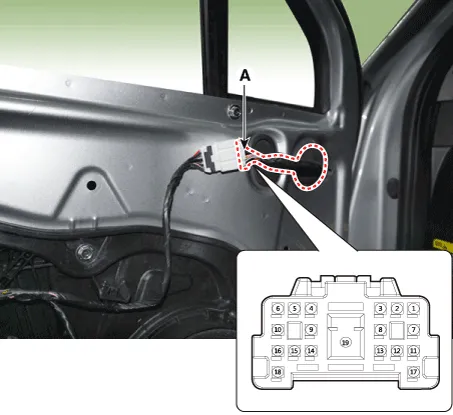

Disconnect the power door mirror connector from the harness

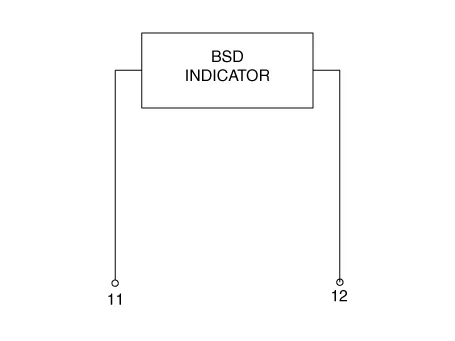

BCW indicator
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the door mirror assembly.
(Refer to Body - "Outside Rear View Mirror")
3.

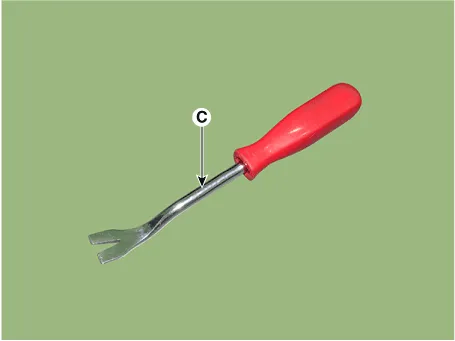

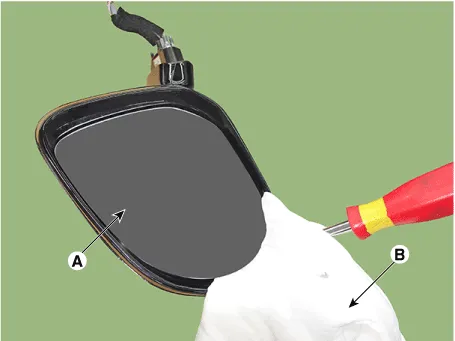

Using a fastener remover (C), remove the mirror (A) as illustration below.


•
Protect mirror (A) from removing tool with cloth (B) wrapped.
•
Be careful not to damage mirror and mirror housing during removing process.
•
Apply force around the center of mirror because to apply force the end of mirror will break it.
4.

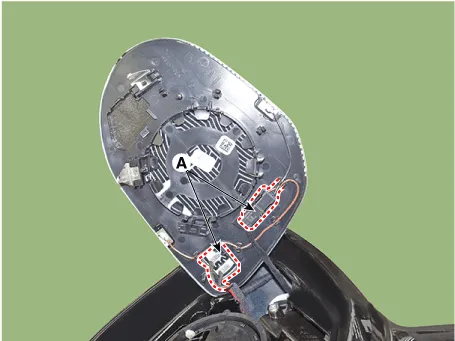

Disconnect heat wire and BCW connectors (A) and then remove the mirror.
Installation
1.
Connect mirror heat wire connector and BCW connector then mount mirror.
2.
Install the door mirror assembly.
3.
Connect (-) battery terminal then check if door mirror lamp works normally.

    Components 1. BCW Indicator 2. Side repeater lamp 3. SVM Camera
