Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
1.

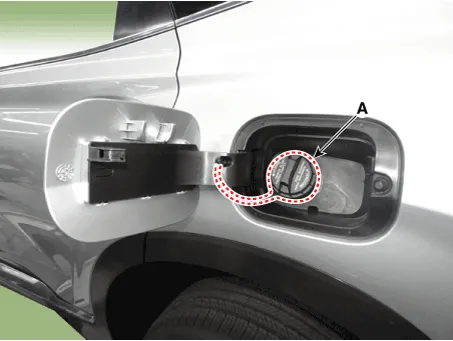

Open the fuel filler door (A).
2.
Remove the luggage side trim.
(Refer to interior trim - "Luggage Side Trim")
3.

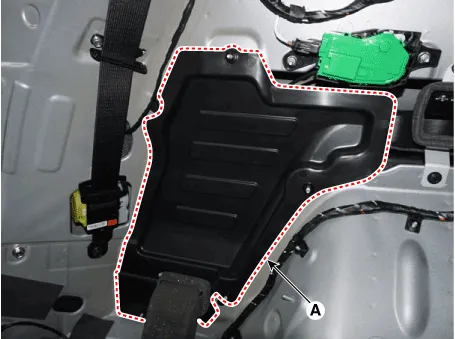

Loosen the mounting nuts and remove the luggage cover (A).
4.

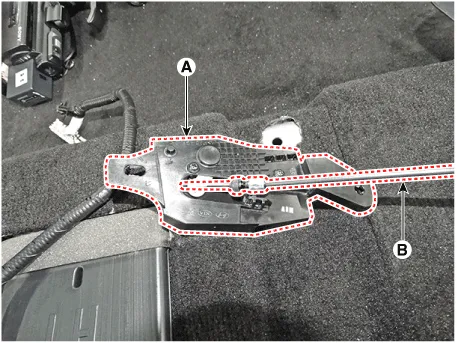

Separate to fuel filler door cable (B) from fuel door actuator (A).
5.

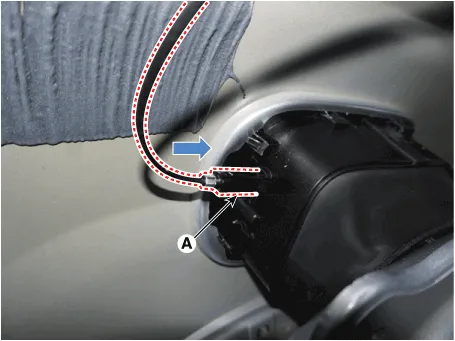

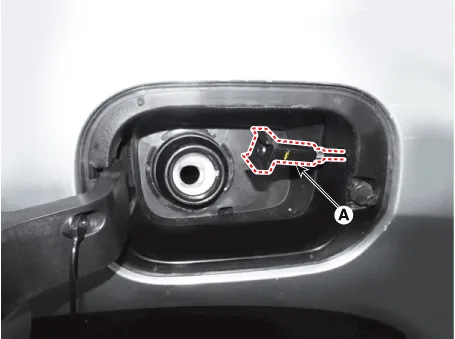

Separate to fuel filler door cable (A).
6.

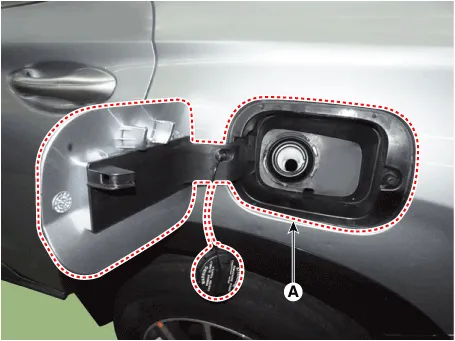

Using a screwdriver or remover, remove the fuel filler door (A).
7.
To install, reverse removal procedure.

•
Make sure the fuel filler door locks/unlocks and opens/closes properly.
•
Replace any damaged clips (or pin-type retainers).
