Hyundai Santa Fe (TM): Body Side Molding / Rear Spoiler. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Body Side Molding / Rear Spoiler. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Take care not to scratch the body surface.
1.
Remove the tailgate upper trim.
(Refer to Tailgate - "Liftgate Trim")
2.

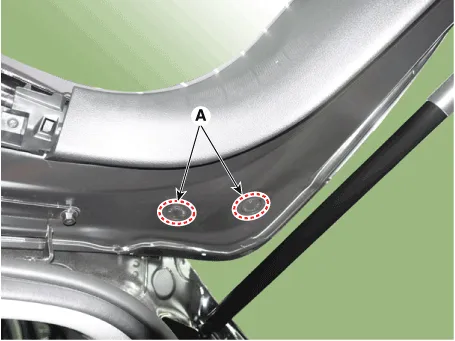

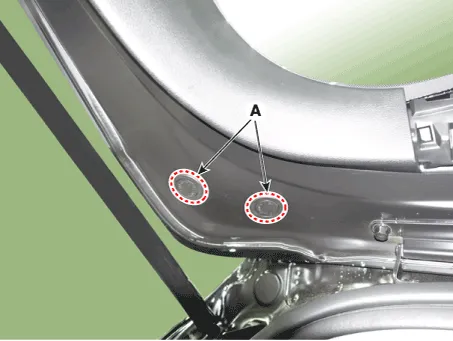

Remove the rear spoiler plug hole (A).
[LH]

[RH]
3.

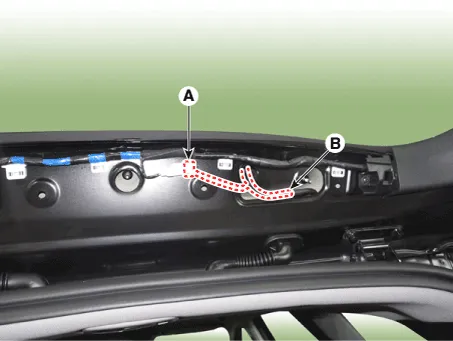

Separate the rear stop lamp connector (A) and rear washer nozzle (B).
4.

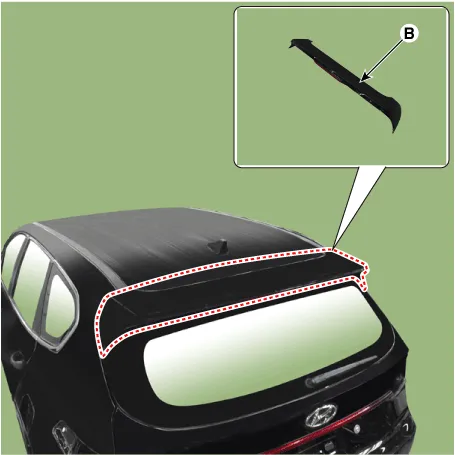

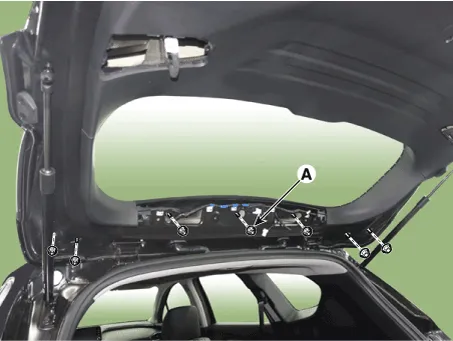

Loosen the mounting nuts (A) and remove the rear spoiler (B).
Tightening torque :
2.4 - 3.1 N.m (0.2 - 0.3 kgf.m, 1.7 - 2.3 lb-ft)

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin-type retainers).
