Hyundai Santa Fe (TM): Seats / Rear seats

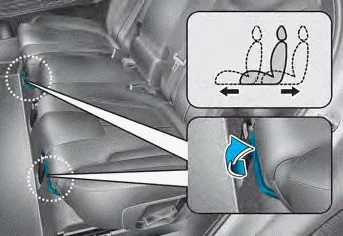

Forward and backward (2nd row seat)
To move the seat forward or backward:
1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

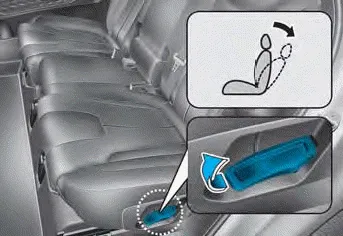

Seatback angle (2nd row seat)
To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

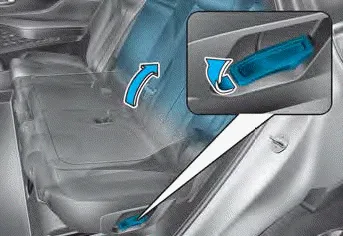

- Folding the rear seat

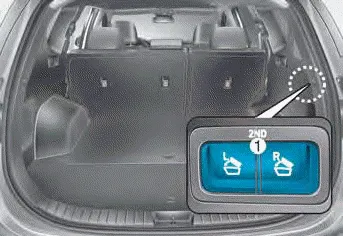

- 2nd row seat folding (from outside)

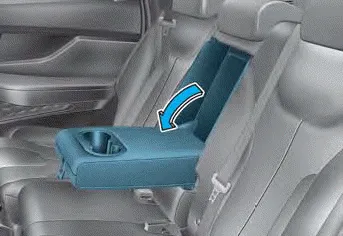

- Armrest
- Rear occupant alert system (2nd seat)
The seatback pocket is provided on the back of the front seatbacks. CAUTION Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure occupants.
The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle. WARNING Never allow passengers to sit on top of the folded down seatback while the vehicle is moving.
