Hyundai Santa Fe (TM): Power Tailgate Module / Power Tailgate Unit. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit. Repair procedures

Removal

1)
After replacing with a new power tailgate module, check for DTC code at all times.
If DTC code B24B0 exists, perform power tailgate mode change.
(Refer to Power Tailgate Module - "Troubleshooting")
2)
After replacing with a new power tailgate module, perform the system initialization.
(Refer to Power Tailgate Module - "Troubleshooting")
3)
Before delivery to customer, operate the power tailgate to be sure that there is no warning sound.
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear left luggage side trim.
(Refer to Body - "Luggage Side Trim")
3.

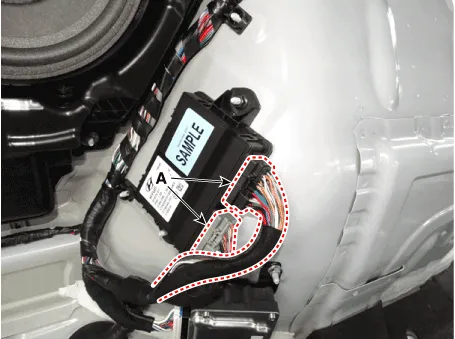

Remove the power tailgate unit connectors (A).
4.

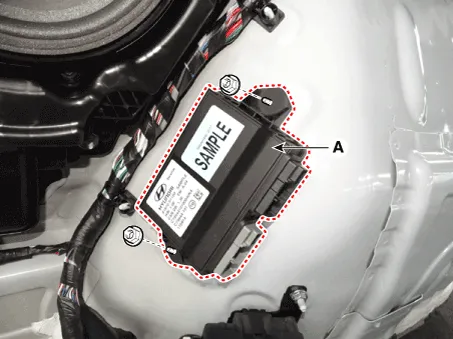

Remove the power tailgate unit (A).

Installation
1.
Install the power tailgate unit.
Tightening torque :
4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb-ft)
2.
Install the rear left luggage side trim.
3.
Connect the negative (-) battery terminal.

    Circuit Diagram
