Hyundai Santa Fe (TM): Power Tailgate Module / Power Tailgate Unit. Schematic diagrams
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Tailgate Module / Power Tailgate Unit. Schematic diagrams

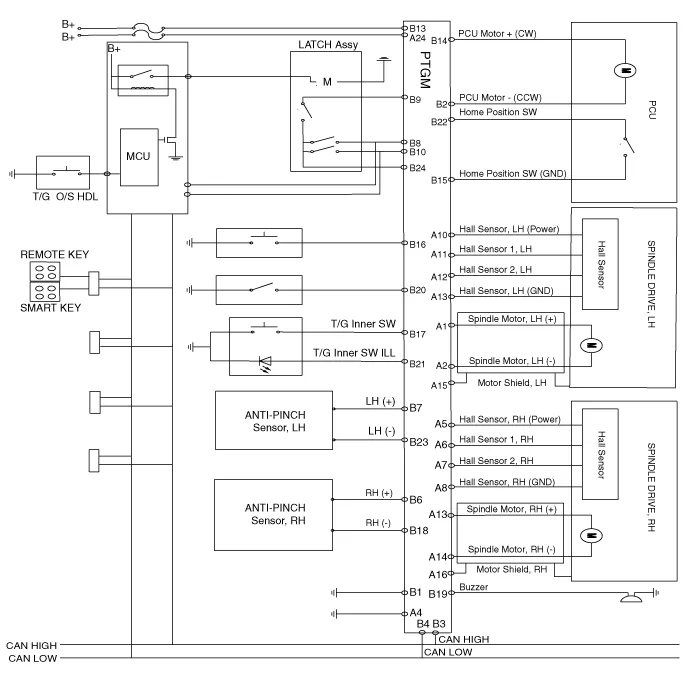

| Circuit Diagram |
Removal 1) After replacing with a new power tailgate module, check for DTC code at all times.
