Hyundai Santa Fe (TM): Power Door Locks / Power Door Lock Switch. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch. Repair procedures

Diagnosis with Diagnostic Tool
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system.
The diagnostic system provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.

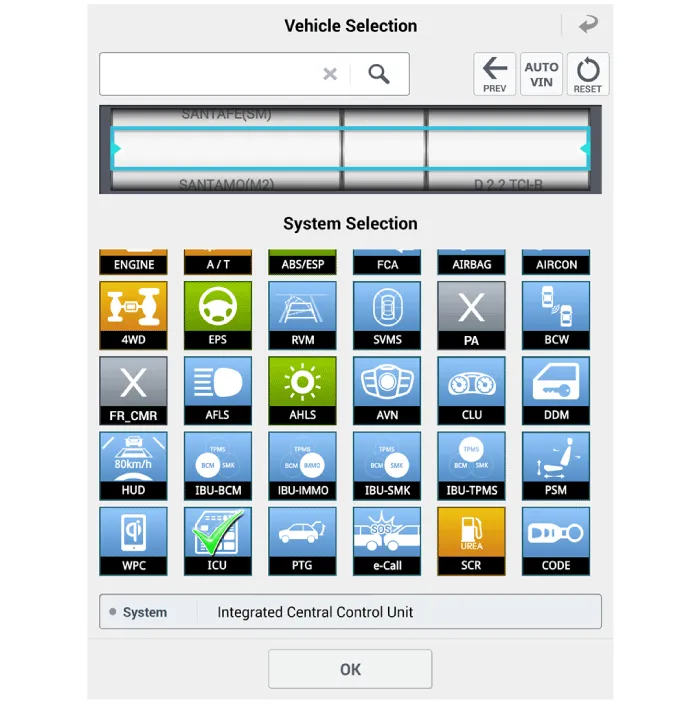

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".
3.

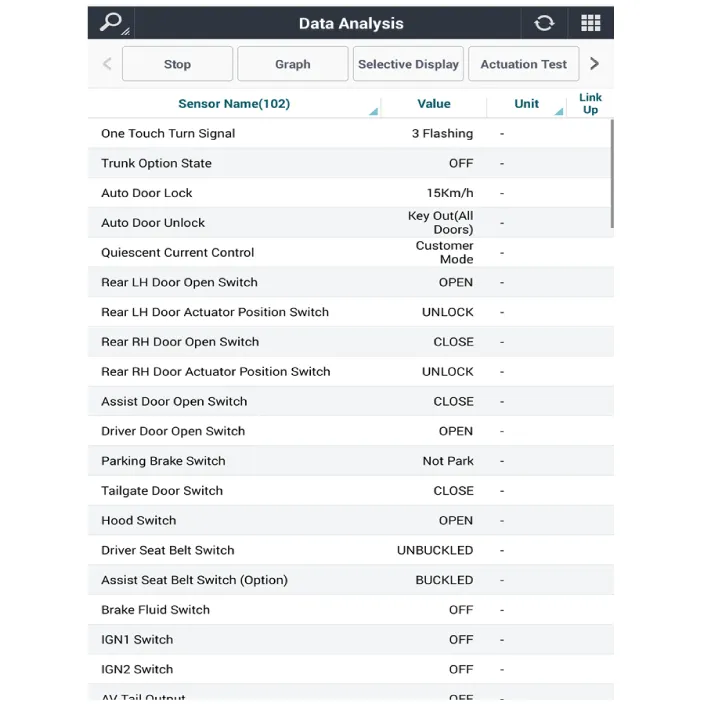

If check current status, select the "Data Analysis" and "Car model".
4.
Select the 'ICU' to search the current state of the input/output data.
5.

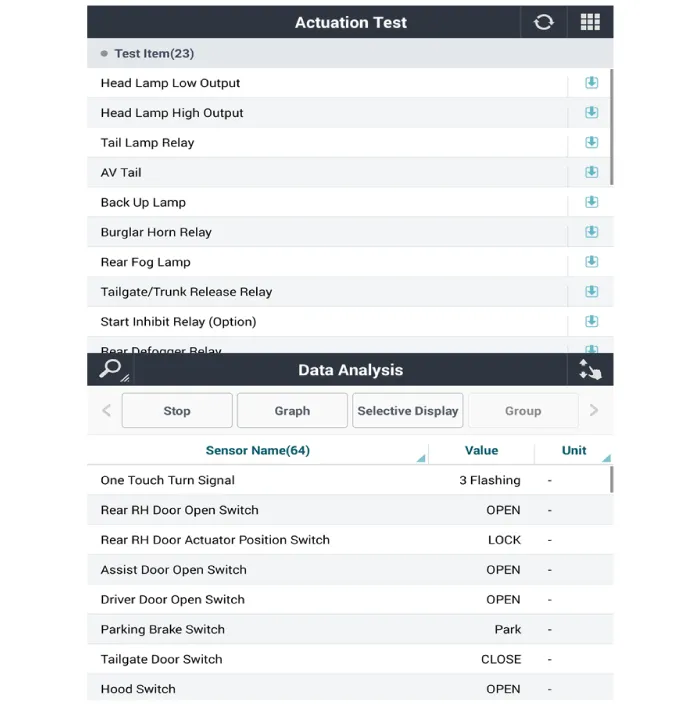

To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.
Removal
Driver Power Window Switch
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
3.

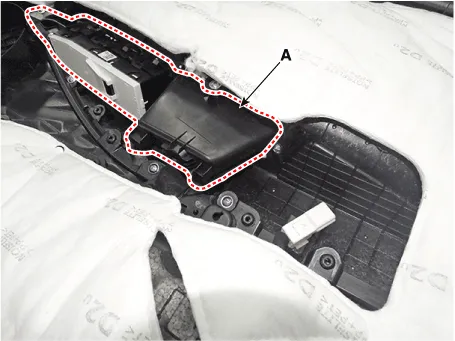

Remove the power window bezzel assembl (A) after loosening the mounting screws.
4.

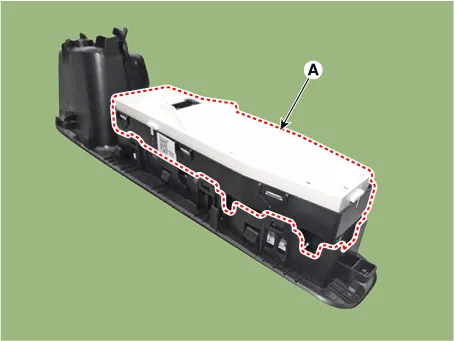

Remove the power window switch assembly (A) after loosening the mounting screws.
Installation
Driver Power Window Switch
1.
Install the power window switch assembly.
2.
Install the front door trim after connecting the connector.

    Inspection Front Door Lock Module Inspection 1. Remove the front door trim. (Refer to Body - "Front Door Trim") 2.
