Hyundai Santa Fe (TM): Cylinder Block / Piston and Connecting Rod. Components and components location

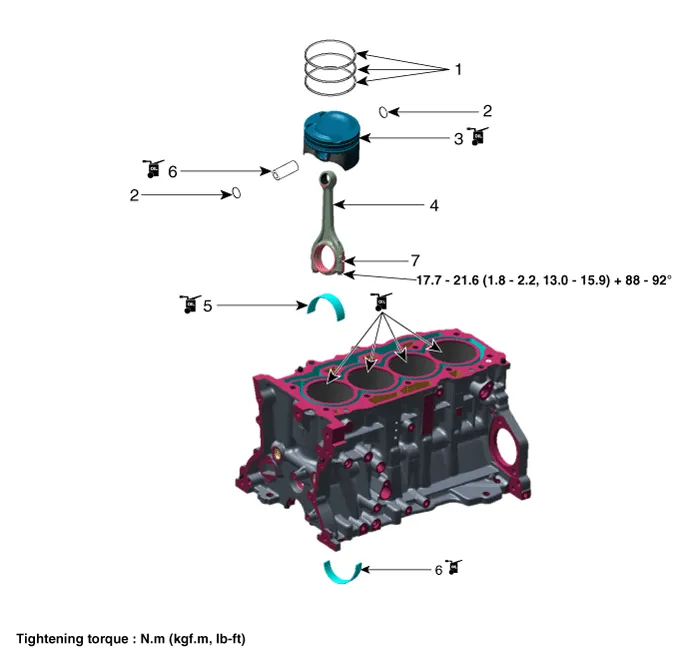

| Components |
| 1. Piston ring 2. Snap ring 3. Piston 4. Connecting rod |
5. Connecting
rod upper bearing 6. Connecting rod lower bearing 7. Connecting rod bearing cap |
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Disassembly • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
