Hyundai Santa Fe (TM): Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Specifications

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Specifications

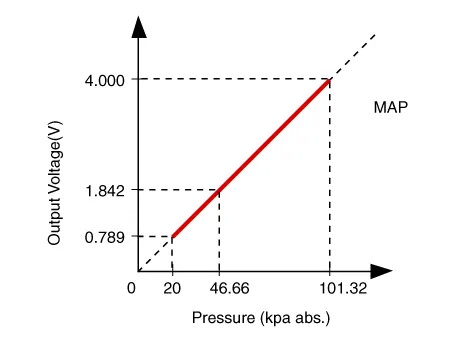

Specification
Pressure (kPa)
Output Voltage (V)
20.0
 0.79
46.7
 1.84
101.3
 4.0

    Description Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfers the analog signal proportional to the pressure to the ECM.

    Circuit Diagram Harness Connector
