Hyundai Santa Fe (TM): Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Control/Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS). Repair procedures

Inspection
1.
Connect the diagnostic tool on the Data Link Connector (DLC).
2.
Measure the output voltage of the MAPS at idle and IG ON.
Specification : Refer to "Specification"
Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.

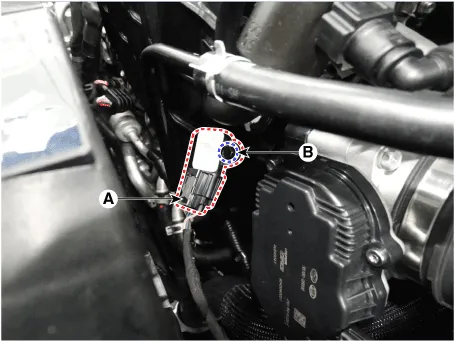

Disconnect the manifold absolute pressure sensor connector (A).
3.
Remove the installation bolt (B), and then remove the sensor from the surge tank.
Tightening Torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Installation

•
Install the component with the specified torques.
•
Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

•
Insert the sensor in the installation hole and be careful not to damage when installation.
1.
Installation is reverse of removal.

    Circuit Diagram Harness Connector

    Description Intake Air Temperature Sensor (IATS) is included inside Manifold Absolute Pressure Sensor and detects the intake air temperature.
