Hyundai Santa Fe (TM): Convenience features / Integrated memory system

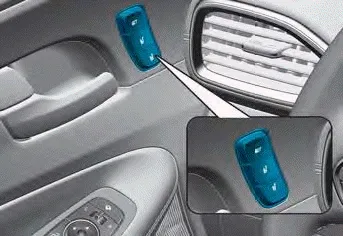

Integrated Memory System for the driver’s seat is provided to store and recall the following memory settings with a simple button operation.

• Driver’s seat position
• Side View mirror position

WARNING

Never attempt to operate the integrated memory system while the vehicle is moving.

This could result in loss of control, and an accident causing death, serious injury, or property damage.

Information

• If the battery is disconnected, the memory settings will be erased.
• If integrated memory system does not operate normally, have the system inspected by an authorized HYUNDAI dealer.

Storing memory positions

1. Shift to P (Park) while the Engine Start/Stop button is in the ON position.

2. Adjust the driver’s seat position, side view mirror position, steering wheel position, instrument panel illumination intensity and head-up display height/brightness to the desired position.

3. Press the SET button. The system will beep once and notify you ‘Press button to save settings’ on the cluster LCD display.

4. Press one of the memory buttons (1 or 2) within 4 seconds. The system will beep twice when the memory has been successfully stored.

5. ‘Driver 1 (or 2) settings saved’ will appear on the cluster LCD display. The message appears only for the driver’s seat position memory setting.

Recalling memory positions

1. Shift to P (Park) while the Engine Start/Stop button is in the ON position.

2. Press the desired memory button (1 or 2). The system will beep once, and then the driver’s seat position, side view mirror position, steering wheel position, instrument panel illumination intensity and head-up display height/ brightness will automatically adjust to the stored positions.

3. ‘Driver 1 (or 2) settings applied’ will appear on the cluster LCD display.

Information

• If you press the SET button or the corresponding button which the setting is being recalled, the setting will temporarily deactivate. If you press the other buttons, the setting of the pressed button will activate. For example, if you press the SET button or number 1 button with the number 1 setting in operation, the setting will temporarily deactivate. If you press the number 2 button, the number 2 setting will activate.
• If you adjust the seat, rearview mirror, steering wheel, instrument panel illumination or head-up display while recalling the stored positions, the preset settings will become ineffective.

Resetting the system

Take the following procedures to reset integrated memory system, when it does not operate properly.

Resetting integrated memory system

1. Stop the vehicle and open the driver’s door with the Engine Start/Stop button in the ON position and the vehicle shifted to P (Park).

2. Adjust the driver’s seat and seatback to the foremost position.

3. Press the SET button and push forward the driver’s seat movement switch over 2 seconds simultaneously.

While resetting integrated memory system

1. Resetting starts with a notification sound.

2. The driver’s seat and seatback is adjusted to the rearward position with the notification sound.

3. The driver’s seat and seatback is re-adjusted to the default position (central position) with the notification sound.

However, in the following cases, the resetting procedure and the notification sound may stop.

• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3km/h).
• The driver’s door is closed.

NOTICE

• While integrated memory system is being reset, if the resetting and notification sound stops incompletely, restart the resetting procedure again.
• Make sure that there is no objects around the driver’s seat in advance of resetting the integrated memory system.

Easy access function

The system will move the driver’s seat automatically as follows:

• With remote key
  - It will move the driver’s seat rearward when the ignition key is removed.
  - It will move the driver’s seat forward when the ignition key is inserted.
• With smart key
  - It will move the driver’s seat rearward when the Engine Start/ Stop button is pressed to the OFF position.
  - It will move the driver’s seat forward when the Engine Start/Stop button is pressed to the ACC or START position.

You can activate or deactivate the Easy Access Function from the User Settings mode on the LCD display. ‘Convenience -> Seat Easy Access -> Off/Normal/Extended’.

CAUTION

Driver should be cautious when using this function to assure no injury to passenger or child on the back seat. In case of emergency the driver has to stop movement of front seat (when easy access feature is activated) by pressing SET button or any of the driver seat control switches.
