Hyundai Santa Fe (TM): Engine Control System / Injector. Schematic diagrams

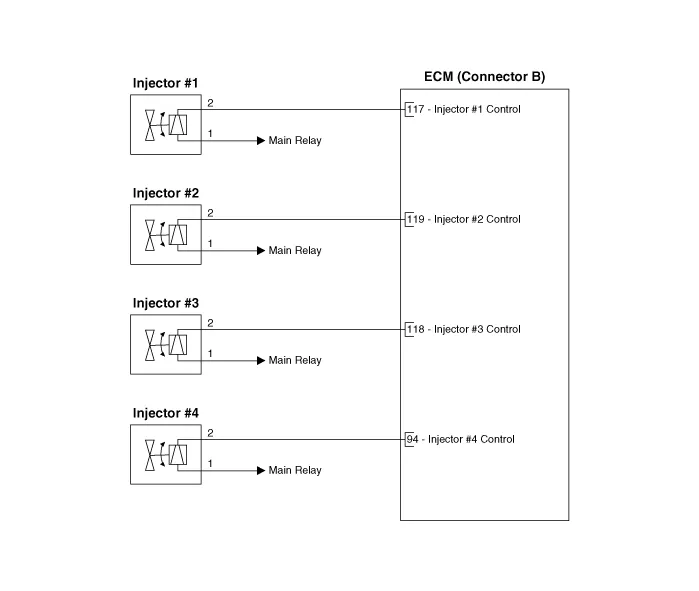

| Circuit Diagram |
Specification Item Specification Coil Resistance (Ω) 13.8 - 15.2 [20°C (68°F)]
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the injector connector. 3.
