Hyundai Santa Fe (TM): Engine Control System / Injector. Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Engine Control/Fuel System / Engine Control System / Injector. Description and operation

Description

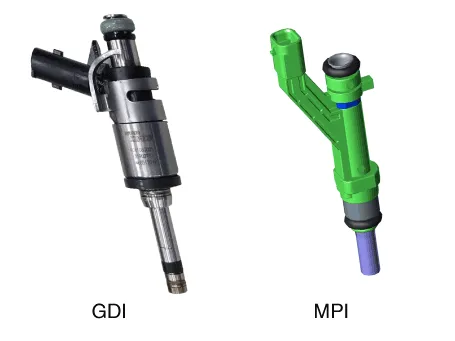

Based on information from various sensors, the ECM can calculate the fuel amount to be injected. The fuel injector is a solenoid-operated valve and the fuel injection amount is controlled by length of injection time. The ECM controls each injector by grounding the control circuit. When the ECM energizes the injector by grounding the control circuit, the circuit voltage should be low (theoretically 0V) and the fuel is injected. When the ECM de-energizes the injector by opening control circuit, the fuel injector is closed and circuit voltage should momentarily peak.

    Inspection 1. Connect the diagnostic tool on the Data Link Connector (DLC). 2. Turn the ignition switch ON.

    Specification Item Specification Coil Resistance (Ω) 13.8 - 15.2 [20°C (68°F)]
