| Inspection |
| 1. |

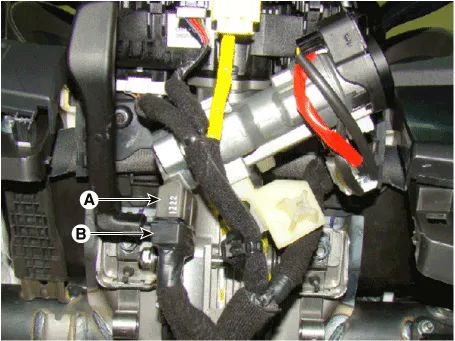

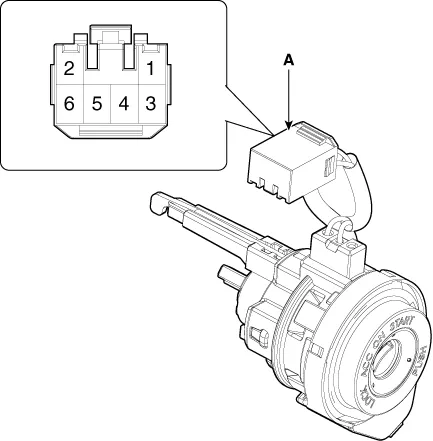

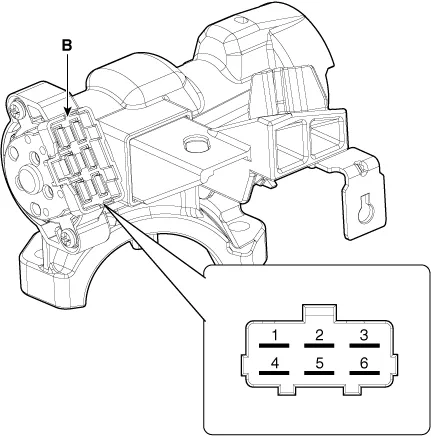

Disconnect the ignition switch connector (B) and key warning switch
connector (A) from under the steering column.
|
| 2. |
Check for continuity between the terminals.
|
| 3. |
If continuity is not specified, replace the switch.
|

| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
|
| 3. |
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
|
| 4. |
Remove the ignition switch (A) after disconnecting the 6P connector
(B).
|
| 5. |

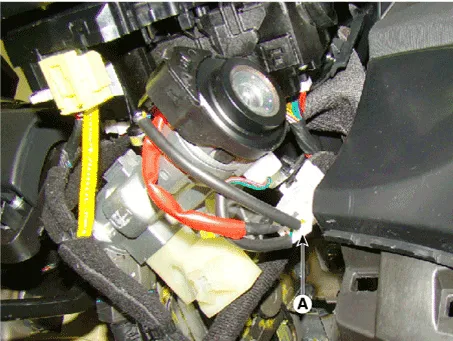

Remove the key warning and immobilizer connector (A).
|
| 6. |

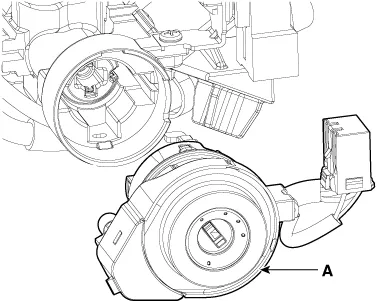

If it is necessary to remove the key lock cylinder (A), remove the key
lock cylinder with key ACC.
|
| Installation |
| 1. |
Install the key lock cylinder.
|
| 2. |
Install the key warning and immobilizer connector.
|
| 3. |
Install the ignition switch.
|
| 4. |
Install the steering column shrouds and crash pad lower panel.
|
