Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.

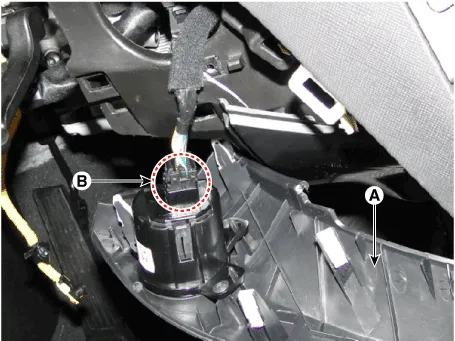

Disconnect the start/stop button connector (B) after removing the center fascia garnish (A).
4.

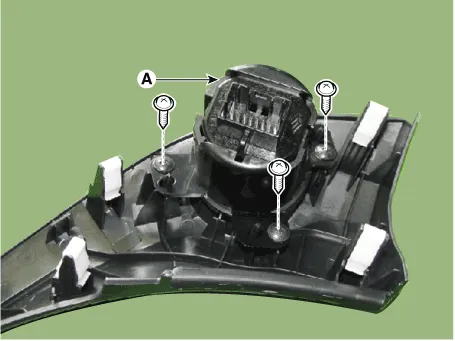

Remove the start/stop button (A) after removing the screws (3EA).
Installation
1.
Install the start/stop button.
2.
Install the crash pad lower panel.
3.
Connect the negative (-) battery terminal.

    Component

    Inspection 1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
