Hyundai Santa Fe (TM): Hood / Hood Latch. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Hood / Hood Latch. Repair procedures

Replacement
1.
Remove the front bumper assembly.
(Refer to Front Bumper - "Front Bumper Assembly")
2.

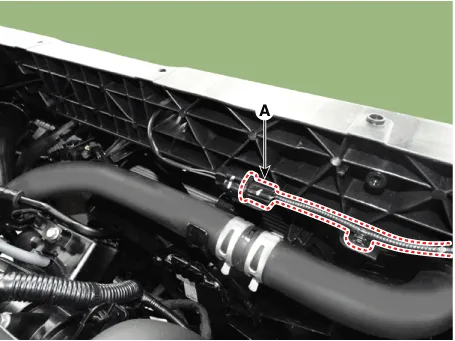

Press the rock pin to separate the hood latch connector (A) and disconnect wiring clip.
3.

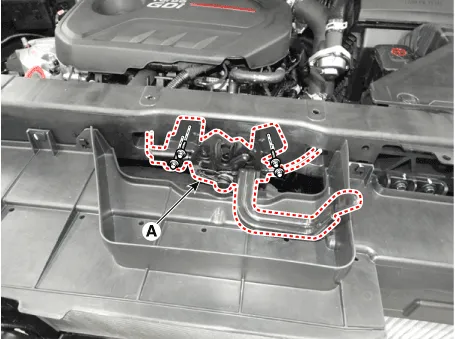

Loosen the mounting bolts and clip from the hood latch (A).
4.

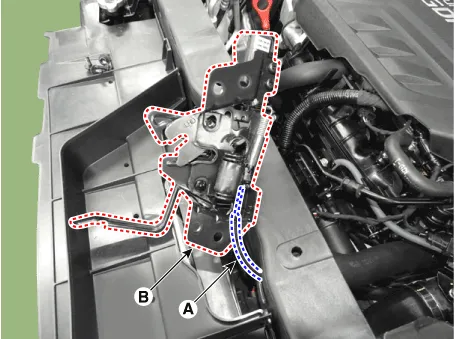

Remove the hood release handle cable (A) from the hood latch (B).
5.
To install, reverse removal procedure.

•
Make sure the hood latch release cable is connected properly.
•
Make sure the hood locks / unlocks and opens / closes properly.
•
Adjust the latch alignment.
•
Replace any damaged clips (or retainers or fasteners).

    Component Location 1. Hood Latch Assembly
