Hyundai Santa Fe (TM): Hood / Hood Assembly. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Hood / Hood Assembly. Repair procedures

Replacement

•
Be careful not to damage the hood and body.

•
Removing or installing the hood requires an assistant.
•
When removing the clips, use a clip remover.
1.

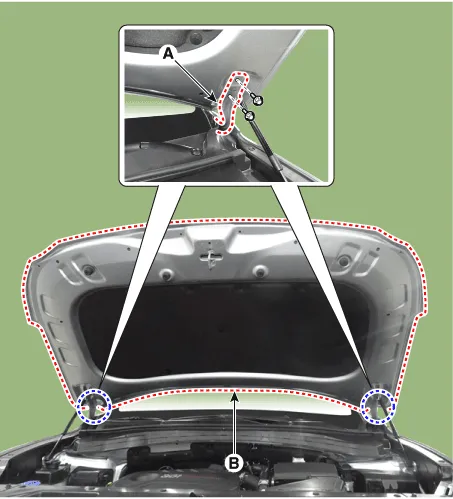

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening torque :
21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

2.
To install, reverse removal procedure.

•
Make sure the hood locks / unlocks and opens / closes properly.
•
Adjust the hood alignment.
