Hyundai Santa Fe (TM): Front Seat Belt / Front Seat Belt Buckle. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle. Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

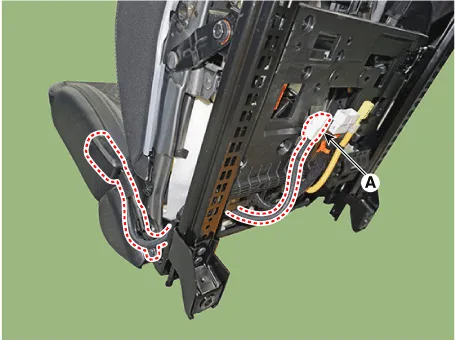

Disconnect the front seat belt buckle connector wiring (A).
3.

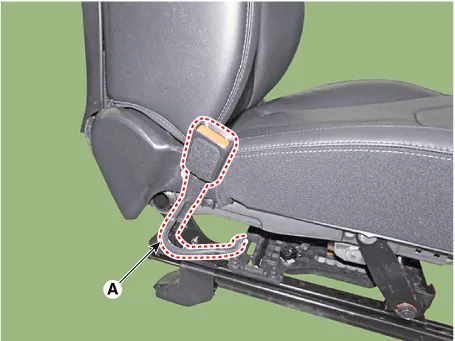

After loosening the mounting bolt, then remove the front seat belt buckle (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

4.
To install, reverse removal procedure.

•
Make sure the connector is plugged in properly.

    Component Location 1. Front seat belt buckle
