Hyundai Santa Fe (TM): Front Seat / Front Seat Assembly. Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Front Seat / Front Seat Assembly. Components and components location

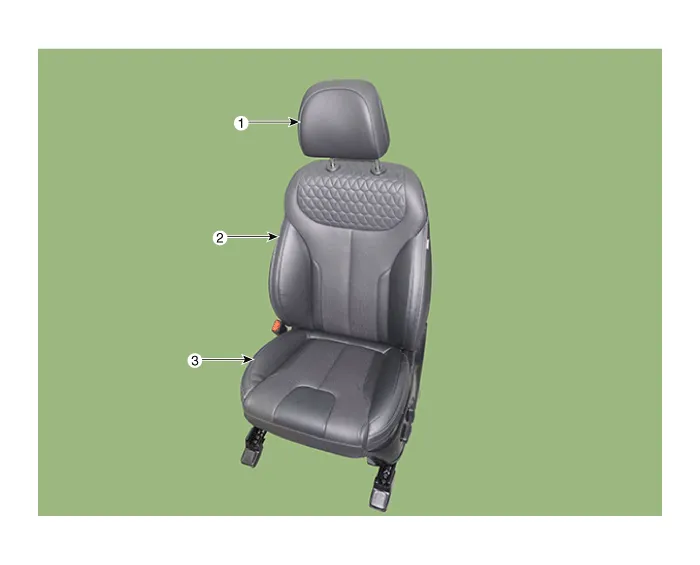

Component Location

1. Front seat headrest
2. Front seat back cover
3. Front seat cushion cover

    Replacement 1. Open the cover and loosen the front seat mounting bolts. [Front] Tightening torque : 44.
