Replacement
1.

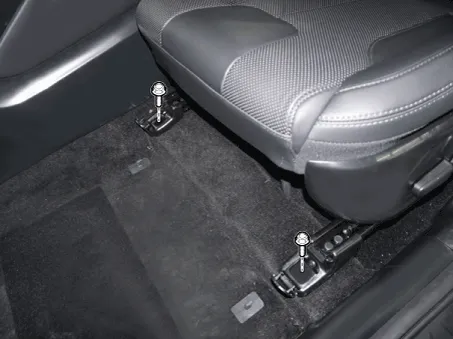

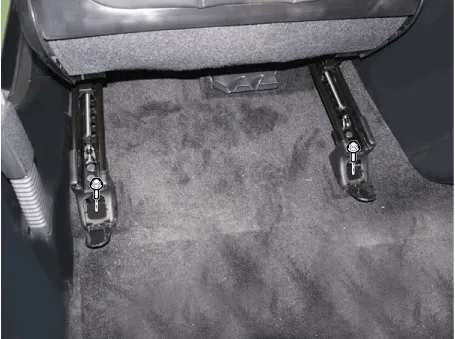

Open the cover and loosen the front seat mounting bolts.
[Front]
Tightening torque :
44.1 - 58.8 N.m (4.5 - 6.0 kgf.m , 32.5 - 43.4 lb-ft)

[Rear]

2.

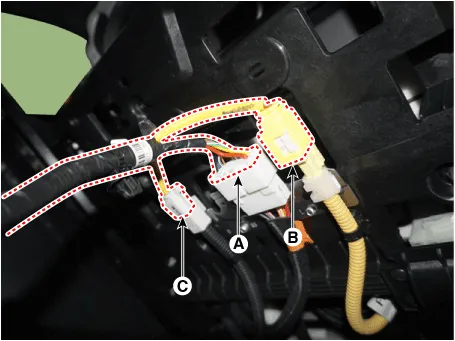

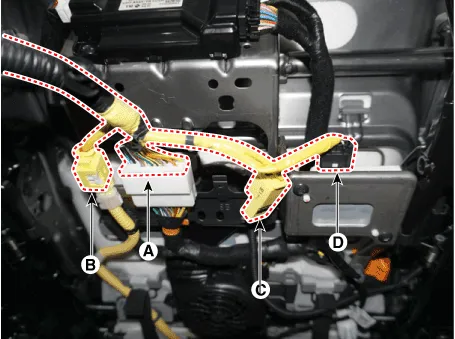

Separate the main connector (A) , side airbag connector (B) , front seat belt buckle connector (C) and OCS connector (D).
[Driver's]

[Passenger's]

3.
To install, reverse removal procedure.

The installation procedures of seat mounting bolts
•
Push the seat to the rear end of slides and initially tighten the front mounting bolts.
•
Push the seat to the front end of slides and completely tighten the rear mounting bolts.
•
Send the seat to the rear end again to completely tighten the front mounting bolts.
•
Check the seat for smooth movement.
•
For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
