Hyundai Santa Fe (TM): Front Radar System / Front Radar Unit. Schematic diagrams

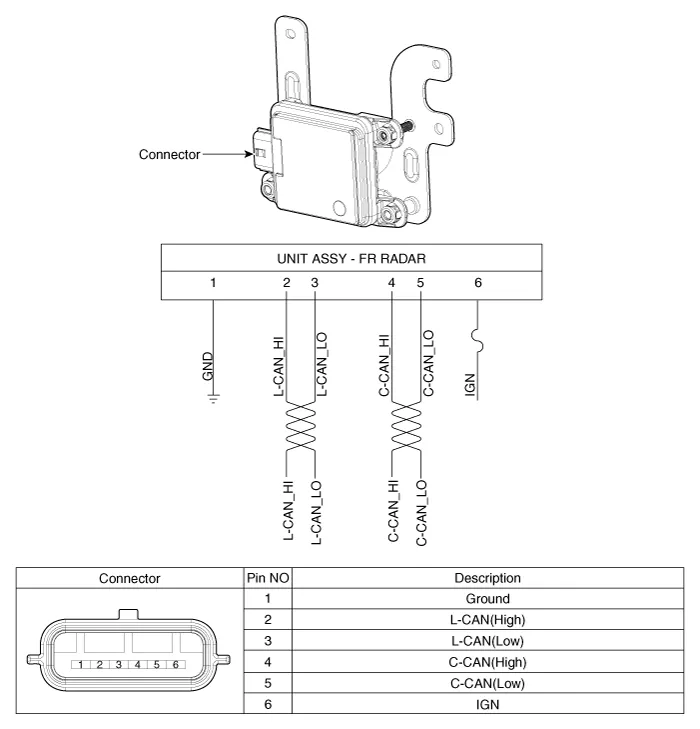

| Circuit Diagram |
Specification Item Specification Power supply (V) 12 Operation voltage (V) 9 - 16
Inspection Inspection procedure for vehicle with Forward Collision-Avoidance Assist and Smart Cruise Control system failure 1.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Panorama Sunroof
Components and components location Component Location 1. Panorama sunroof 2. Panorama sunroof switch 3. Panorama sunroof motor & controller 4. Roller blind motor & slave controller Schematic diagrams Circuit Diagram Connector Pin Information No
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Special service tools
Special Service Tools Tool Name / Number Illustration Description LKA Compensator (09890-3V100) Used for compensating front view camera unit Vertical measuring instrument (09964-C1200) Used to measure l
