Hyundai Santa Fe (TM): Air conditioning System / Condenser. Components and components location

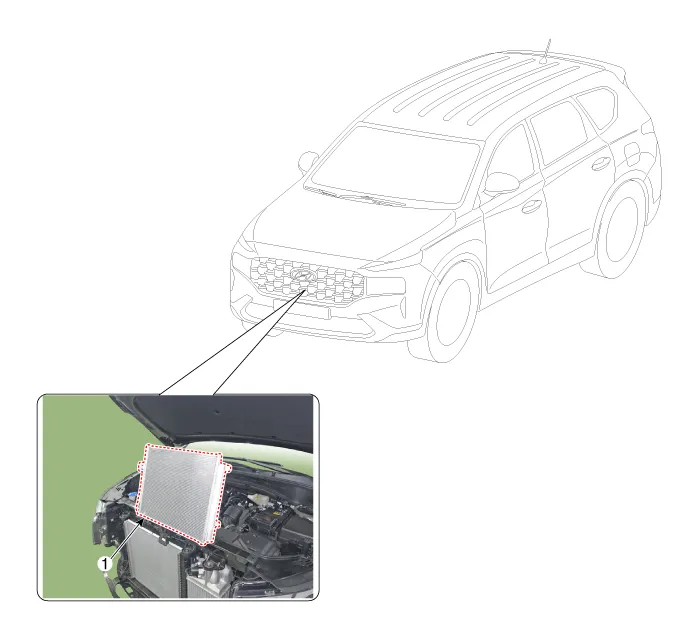

| Components Location |
| 1. Condensor |
Removal 1. If a compressor is available, the air conditioner is operated for a few minutes in the engine idle state and then the engine is stopped.
Inspection 1. Check the condenser fins for clogging and damage. If clogged, clean them with water, and blow them with compressed air.
