Hyundai Santa Fe (TM): Engine Control System / Engine Coolant Temperature Sensor (ECTS). Schematic diagrams

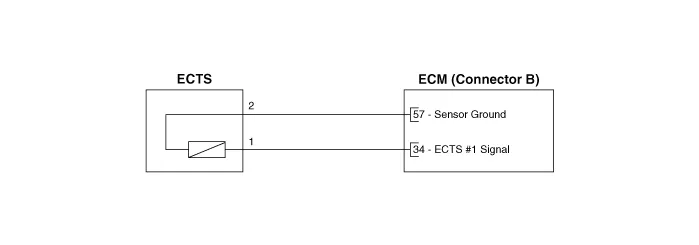

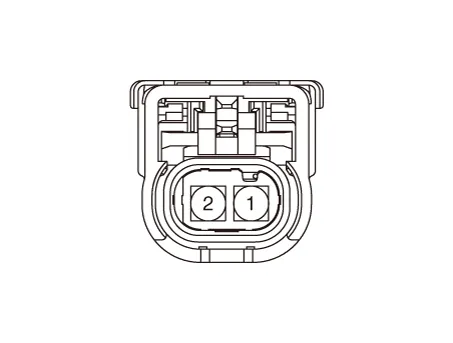

| Circuit Diagram |
Specification Temperature [°C (°F)] Resistance (kΩ) -40 (-40) 41.74 - 54.54 -30 (-22) 23.
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the ECTS connector. 3.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Indicators And Gauges
Troubleshooting Troubleshooting Symptom Possible cause Remedy Speedometer does not operate Cluster fuse (10A) blown Check for short and replace fuse Speedometer faulty Check speedometer CAN line faulty
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Ambient Temperature Sensor. Repair procedures
Inspection 1. Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature. 1. Ambient Sensor (+) 2.
